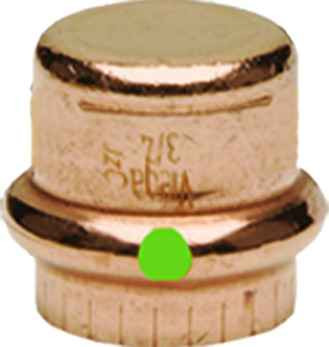

77722 Viega ProPress cap Smart Connect technology Copper, 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- Copper
- Product Dimension:
- 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Length:
- 1.11"
- Product Height:
- 1.5"
- Product Weight:
- 0.122 lbs
- Product Width:
- 1.5"
- Product Material:
- Copper
Viega 77722 – Frequently Asked Questions
1) What size copper pipe does the Viega 77722 ProPress cap fit?
The Viega 77722 is a 1 inch ProPress cap, so it presses onto 1 inch nominal copper tube. It is a press-fit connection, not sweat and not threaded, so the tube end has to be cut clean, deburred and marked for insertion depth before pressing.
2) What is Smart Connect on the Viega 77722 cap?
Smart Connect is Viega's feature that lets an unpressed 77722 cap leak visibly during pressure testing, so an joint you missed shows itself before the wall closes up. It does not change how the cap is pressed, and it is not a substitute for pressing every connection.
3) Can I use a ProPress cap to dead-end a stub-out or cap off a line during a renovation?
That is exactly what the 1 inch 77722 cap does. It closes the end of a 1 inch copper run permanently, which is the usual move for abandoning a branch, capping a stub-out, or sealing a riser for pressure test. Because it presses on, nothing has to be drained bone dry the way a sweat joint does.
4) Can a pressed ProPress cap be removed and reused later?
No. Pressing permanently deforms the copper 77722 cap onto the tube, so taking a line back out of service means cutting the cap and a short length of tube off and starting with a fresh fitting. If you expect to reopen the line, use a valve or a threaded adapter and plug instead of a cap.
5) How much clearance do I need around a Viega 77722 cap in a tight chase?
The cap itself measures 1.5 inches in height and width with a 1.11 inch length, and weighs 0.122 lbs. Plan clearance around the press jaw, not the fitting, since the jaw needs room to open and close fully around the 1 inch collar.
6) Where is the Viega 77722 ProPress cap made?
Germany. For agencies and institutional buyers that track country of origin on submittals, the 77722 is a Made in Germany part.
