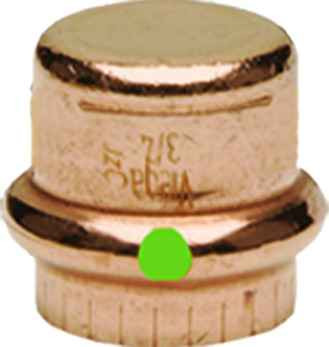

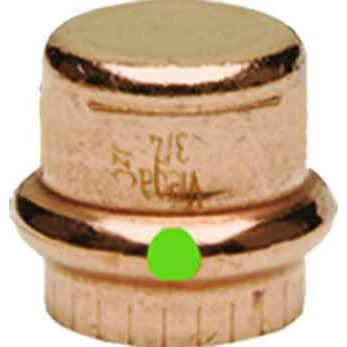

77727 Viega ProPress cap Smart Connect technology Copper, 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- Copper
- Product Dimension:
- 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Length:
- 1.319"
- Product Height:
- 1.76"
- Product Weight:
- 0.175 lbs
- Product Width:
- 1.76"
- Product Material:
- Copper
Viega 77727 – Frequently Asked Questions
1) Will the Viega 77727 ProPress cap fit 1-1/4 inch copper tube?
Yes. The Viega 77727 is a 1-1/4 inch ProPress cap, so it slips over the end of 1-1/4 inch nominal copper tube and gets pressed with a ProPress jaw. It is a copper-bodied press fitting, matched to copper systems rather than steel or PEX.
2) Do I need solder or a torch to install the Viega 77727 cap?
No flame, no solder, no flux. The 77727 is a press-connect fitting, installed cold with a ProPress tool and the correct 1-1/4 inch jaw. That is the main reason it gets specified in occupied buildings and retrofits where hot work permits are a problem.
3) What does Smart Connect technology do on a Viega ProPress cap?
Smart Connect is Viega's unpressed-connection feature: if the cap is left unpressed during a pressure test, the seal element lets water or air escape past it so the installer can find the missed joint instead of discovering it after the walls close up. The 77727 carries it.
4) How much room do I need to press a 1-1/4 inch ProPress cap on a stubbed line?
The cap itself is compact: 1.319 inches long and 1.76 inches across. You still need clearance around the tube for the press jaw to close, so plan the stub-out with tool access in mind rather than just the fitting's own footprint.
5) What is a ProPress cap used for on a job?
Capping off a run: dead-ending a branch that is not being used yet, sealing a line for pressure testing, or permanently terminating an abandoned stub. The 77727 closes a 1-1/4 inch copper line with a single pressed joint, so it is a finished connection rather than a temporary plug.
6) Is the Viega 77727 copper or bronze, and where is it made?
Copper body, made in Germany. The copper construction keeps it dissimilar-metal-free on an all-copper potable or hydronic line.
