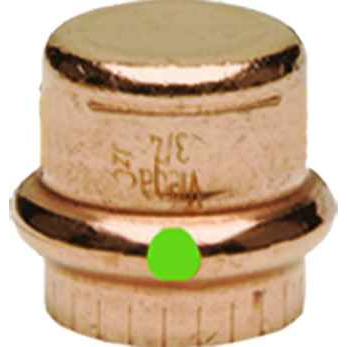

77732 Viega ProPress cap Smart Connect technology Copper, 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- Copper
- Product Dimension:
- 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Length:
- 1.622"
- Product Height:
- 2.122"
- Product Weight:
- 0.331 lbs
- Product Width:
- 2.122"
- Product Material:
- Copper
Viega 77732 – Frequently Asked Questions
1) Will the Viega 77732 ProPress cap fit 1-1/2 inch copper tube?
Yes. The Viega 77732 is a 1-1/2 inch ProPress cap, so it slips over 1-1/2 inch nominal copper tube and is pressed with a ProPress jaw. The body is copper, so it is intended for copper systems rather than steel or PEX.
2) Do I need solder or threading to install a Viega ProPress 1-1/2 inch copper cap?
No flame, no flux, no threads. The 77732 is a press fitting (press connection type), so it goes on with a press tool and the correct 1-1/2 inch jaw. That makes it the usual choice for capping a line in an occupied building where a torch is not allowed.
3) What does Smart Connect do on the Viega 77732 cap?
Smart Connect is the feature in the sealing element that lets an unpressed 77732 cap leak a small amount during pressure testing, so an installer can find a connection that was missed before the system is put into service. On a dead-end cap that matters, because a forgotten press at a capped stub is easy to overlook.
4) Can I use a Viega copper ProPress cap to permanently terminate a line, or is it only for testing?
A pressed 77732 is a permanent copper cap. Press joints are not demountable, so if you expect to extend that branch later, cap it with a valve or a threaded adapter instead and keep the connection serviceable.
5) Is the Viega 77732 ProPress cap made in the USA?
It is made in Germany. That is worth confirming up front on government or federally funded work where domestic-origin language applies to plumbing fittings.
6) What is the manufacturer part number for the 1-1/2 inch Viega ProPress copper cap?
Order it as Viega 77732. It ships as a single cap weighing 0.331 lbs, so for a large rough-in you are ordering by the piece count you need.
