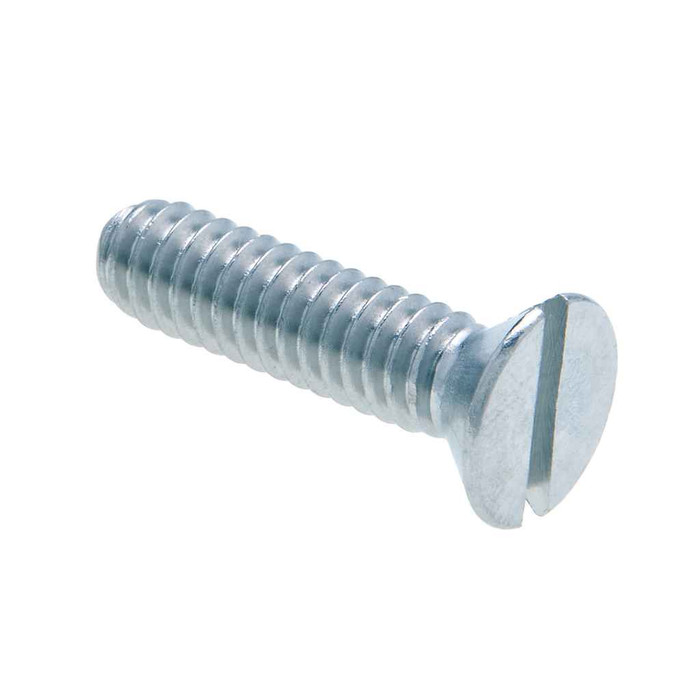

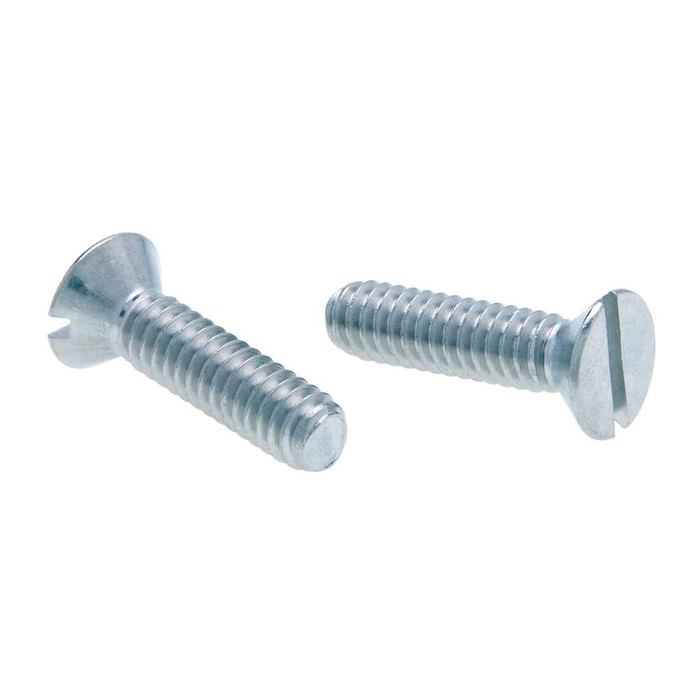

Metallics JFM106 8-32 x 1-3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM106 8-32 x 1-3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM106
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.19
$0.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 1-3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • 8-32 Diameter, 1-3/4" Length
    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.084 - 0.1 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.285 - 0.312 in.
Fastener Length:
1/3/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.87 lbs
Product Width:
3 in
Slot Depth:
0.029 - 0.045
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
850 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM106 – Frequently Asked Questions

1) Does a flat head machine screw need a countersunk hole?
Yes, a flat head seats flush only in a countersunk or dimpled hole. The JFM106 head measures 0.285 to 0.312 in. across with a head height of 0.084 to 0.1 in., so plan a countersink in that range if you want the head level with the surface. In sheet steel plate or an un-countersunk hole the head will stand slightly proud. If you need a bearing surface on a flat untapered hole, use a pan or round head 8-32 instead.
2) Are the Metallics JFM106 screws Buy American or ARRA compliant for a government job?
No. The JFM106 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your contract carries a domestic-sourcing clause, these will not satisfy it and you need a domestically produced 8-32 flat head instead.
3) How many 8-32 x 1-3/4 Metallics screws come in a jar?
They ship 100 to a jar, and the jar is the order minimum. Product weight is listed at 0.87 lbs. Handy if you are stocking a van or a shop drawer rather than buying loose counts.
4) Can I use these zinc plated steel screws outdoors or in a wet location?
These are carbon steel with a zinc plating, made from AISI 1006-1022 steel. Zinc plating is a mild indoor corrosion coating, so it suits dry interior electrical, plumbing, heating and air conditioning work. For wet, damp or coastal exposure, go to a stainless 8-32 instead; plated carbon steel will eventually rust at the cut threads and driver marks.
5) Do these machine screws meet a recognized dimensional spec for submittals?
Head, slot and thread geometry follow ASME B18.6.3-1998, and the thread is to ANSI/ASME B1.1. Material is AISI 1006-1022 steel. Those three are what a spec reviewer typically wants to see on a fastener submittal for electrical work.
6) Will a flat head slotted screw work on an electrical cover plate, or do I need the oval head?
Flat head sits flush in a countersunk plate hole, which is what most metal and some plastic cover plates use. The JFM106 head is 0.285 to 0.312 in. across, so it fills a standard device plate countersink without overhanging. If the plate is dimpled for a decorative oval head, the flat head will seat low and look recessed, so match what is already on the other plates in the building if you are keeping appearance consistent.
