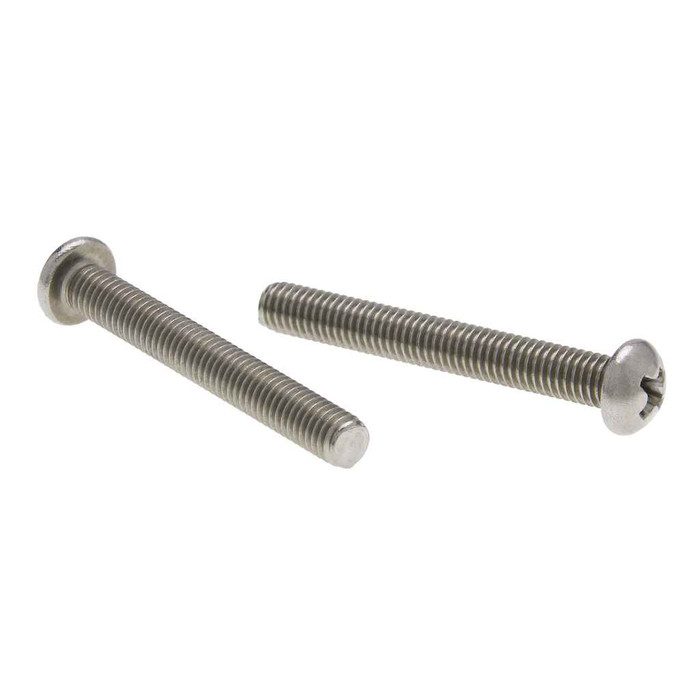

Metallics JSRM16P 8-32 x 3/4 in. Round Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics 8-32 x 3/4 in. Round Head Phillips Machine Screws - 18-8 Stainless Steel - 100 Count

(No reviews yet) Write a Review

Model: JSRM16P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$74.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics 8-32 x 3/4 in. Round Head Phillips Machine Screws - 18-8 Stainless Steel - 100 Count

Professional Grade Stainless Steel Machine Screws for Electrical Applications

Metallics delivers reliable fastening solutions with these 8-32 x 3/4 in. round head Phillips machine screws manufactured from 18-8 stainless steel. These professional-grade machine screws feature a round head design with Phillips drive for secure installation and corrosion resistance in electrical and industrial applications. The 18-8 stainless steel construction provides excellent durability and resistance to environmental factors, while the precise 8-32 threading ensures reliable mechanical connections. Each jar contains 100 screws with consistent quality and dimensional accuracy for professional installations.

Professional Features & Benefits

  • 8-32 x 3/4 in. Dimensions: Standard threading and length provide versatile compatibility with electrical enclosures and mounting applications
  • 18-8 Stainless Steel Construction: Superior corrosion resistance and durability for long-term performance in demanding environments
  • Round Head Phillips Drive: Easy installation with standard #2 Phillips driver and professional finished appearance
  • 80000 psi Minimum Tensile Strength: High-strength performance for secure mechanical connections and structural integrity
  • Rockwell B85-B95 Hardness: Optimal hardness rating ensures reliable threading and resistance to stripping or deformation
  • 100 Count Jar Packaging: Convenient quantity for professional installations with secure storage and easy access
  • SAE Material Standard: Meets industry specifications for consistent quality and performance in electrical applications

Technical Specifications

  • Arra Compliant: C
  • Buy American Compliant: C
  • Country Of Origin: China
  • Department: Electrical
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #2
  • Fastener Head Height: 0.107 - 0.12 in.
  • Fastener Head Type: Round
  • Fastener Head Width: 0.287 - 0.309 in.
  • Fastener Length: 4-Mar
  • Hardness: Rockwell B85-B95
  • Height: 2.15 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Material Standard: SAE
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: CT
  • Pack Type: Jar
  • Phillips Recess Depth: 0.075 - 0.101
  • Phillips Recess Diameter: 0.165 - 0.178
  • Phillips Recess Width: 0.03
  • Product Details: Machine Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 54.61 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Machine Screw
  • Product Weight: 240 g
  • Product Width: 76.2 MM
  • Recess Penetration Gaging Depth: 0.064 - 0.090
  • Series: SRM
  • Sub Division: Electrical-E H2
  • Tensile Strength: 80000 psi minimum
  • Thread Per Inch: 32
  • Type2: Machine Screw
  • Weight: 0.53 lbs
  • Width: 3 in

Professional Applications

  • Electrical Panel and Enclosure Assembly
  • Control Cabinet Installation
  • Equipment Mounting and Securing
  • Industrial Machinery Assembly
  • Commercial Electrical Systems
  • Maintenance and Repair Operations
  • Professional Electrical Installations

Why Choose Metallics Quality?

Metallics machine screws deliver consistent performance with SAE material standards and precise manufacturing tolerances. The 18-8 stainless steel construction ensures long-term reliability and corrosion resistance, while the professional jar packaging provides convenient storage and access for ongoing projects. Trust Metallics for dependable fastening solutions in demanding electrical and industrial applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.107 - 0.12 in.
Fastener Head Type:
Round
Fastener Head Width:
0.287 - 0.309 in.
Fastener Length:
4-Mar
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.075 - 0.101
Phillips Recess Diameter:
0.165 - 0.178
Phillips Recess Width:
0.03
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.53 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.064 - 0.090
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM16P – Frequently Asked Questions

1) Will a round head screw sit flush, or does it stand above the surface?
It stands proud. The round head is a domed, non-countersinking head measuring 0.287 to 0.309 in. across with a head height of 0.107 to 0.12 in., so it bears on top of the material rather than sinking into a chamfered hole. If you need the head level with a cover plate or a machined face, use a flat head 82-degree screw instead.
2) Do these Metallics screws qualify for a Buy American or ARRA job?
No. Country of origin on the JSRM16P is China, so they are not domestic-source fasteners for a Buy America or ARRA-funded project. For work under those provisions you need a fastener with a stated domestic origin.
3) Which driver do I need for these Metallics round head screws?
A #2 Phillips. The recess is a Phillips form measuring 0.165 to 0.178 in. across with a depth of 0.075 to 0.101 in., so a #2 tip seats fully. A #1 will cam out and chew the recess.
4) Is 18-8 stainless the right choice for outdoor or damp-location enclosures?
18-8 stainless is the usual pick for wet, humid, and outdoor enclosure work because it won't rust and stain the cover the way plated steel does after a season. These Metallics screws are 18-8 throughout, not plated, so cutting or scratching a thread doesn't expose bare steel. In heavy chloride exposure (coastal, pool chemical rooms, de-icing salt) 316 stainless is the step up.
5) How strong are these stainless screws for hanging equipment inside a cabinet?
80,000 psi minimum tensile strength with a Rockwell B85-B95 hardness, built to SAE material standards. That covers mounting DIN rail, relays, terminal strips, brackets, and subpanel backplates inside a control cabinet. Note that stainless screws gall easily when run into stainless threads, so back off the speed and use anti-seize on stainless-into-stainless joints.
6) Do machine screws like these need a nut, or do they go into a tapped hole?
Either. A machine screw has a straight, blunt-ended, fully threaded shank with no self-tapping point, so it runs into an already-tapped hole (an electrical box boss, a panel channel, a device strap) or takes a matching 8-32 nut on the back side through a drilled hole. It will not cut its own thread in sheet metal the way a self-drilling or sheet metal screw does.
7) How are these packaged and what is the smallest quantity I can order?
They ship 100 to a jar, and 100 count is the order minimum, so a jar is the base unit. The jar weighs 0.53 lbs (about 240 g) filled, which makes it easy to keep on the truck or in a van bin without a bag splitting.
