Metallics RSB94 8-32 x 4 in. R...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.61
$0.61

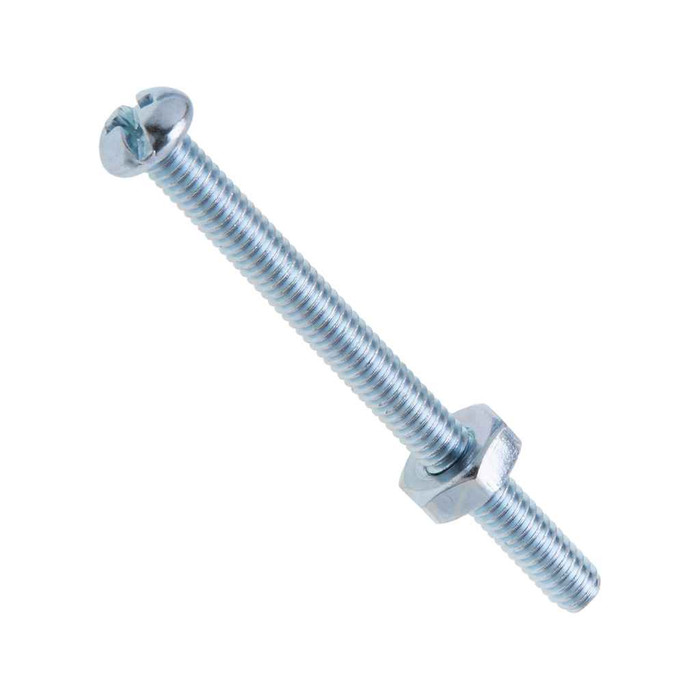

Metallics RSB94 8-32 x 4 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

Metallics RSB94 8-32 x 4 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RSB94
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.61
$0.61
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 4 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

  • Features

    • Round head with slotted and Phillips Drive
    • Hex Machine Screw Nut is designed to be used specifically with machine screws.
    • 8-32 Diameter, 4" Length
    • Steel Zinc Material
    • Includes Hex nut

  • Additional Notes

    • Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#2
Fastener Head Height:
0.107 - 0.12 in.
Fastener Head Type:
Round
Fastener Head Width:
0.287 - 0.309 in.
Fastener Length:
4
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Phillips Recess Depth:
0.101
Phillips Recess Diameter:
0.165 - 0.178
Phillips Recess Width:
0.03
Product Group:
Bolts
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.23 lbs
Product Width:
3.5 in
Slot Depth:
0.058 - 0.077
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
32
Department:
Fasteners
Product Subgroup:
Specialty Bolts
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt
Product Material:
Steel Zinc

Metallics RSB94 – Frequently Asked Questions

1) What thread size and pitch is the Metallics RSB94 stove bolt, and will it take a standard 8-32 nut?
The RSB94 is an 8-32 machine screw thread, 32 threads per inch, right hand, so any standard 8-32 machine screw nut threads on. It ships with a hex machine screw nut included, so you don't need to source nuts separately for a straightforward through-bolt.
2) What is the material and strength of the Metallics RSB94, and is it OK outdoors?
Steel with a zinc finish, made to AISI 1006 to 1022 material, 60,000 psi minimum tensile and a hardness of Rockwell B70-B100. Zinc plating is a mild-duty corrosion coating: fine for indoor electrical, mechanical rooms and dry enclosures, but it will corrode in wet exterior or coastal service. For exposed outdoor work specify stainless or hot-dip galvanized instead.
3) Are these Metallics stove bolts Buy American or ARRA compliant for a government job?
No. The RSB94 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic-sourcing clause, this part will not satisfy it.
4) How big is the head on an 8-32 round head stove bolt, and will it clear a 1/4 inch hole?
Head width measures 0.287 to 0.309 inch with a height of 0.107 to 0.12 inch. That means the head bears over a 1/4 inch (0.250) hole with a little margin, but on a slotted knockout or an oversized hole you'll want a washer under it. The low head profile keeps it from standing proud inside a box or cover plate.
5) Does the Metallics RSB94 stove bolt meet a dimensional standard I can put on a submittal?
Head and recess dimensions are built to ANSI B18.6.3, the standard for inch-series machine screws and tapping screws, with material to AISI 1006 to 1022 and 60,000 psi minimum tensile. That is the combination a spec reviewer looks for on a machine screw callout.
6) What are stove bolts like the RSB94 actually used for on an electrical or mechanical job?
A stove bolt is a machine screw with a round head and a full-length thread run, used with a nut to clamp two parts together where you cannot tap the material. On the trades side the RSB94 is aimed at electrical, plumbing, heating and air conditioning work, bolting straps, brackets, hangers and cover plates through sheet metal. Where you have threaded material to screw into, use a plain machine screw; the stove bolt exists for the through-bolt case.
7) How are Metallics RSB94 stove bolts packaged and what is the minimum I can buy?
They come 100 per package with a minimum order of 100, so you're buying by the jar rather than by the piece. Pack type is clamshell. Total shipping weight for the pack is 2.23 lbs.
8) Is the RSB94 nut a standard hex nut or something specific to machine screws?
It's a hex machine screw nut, which is thinner across the flats and shorter than a standard hex nut of the same thread. That matters in tight enclosures and when you're torquing by hand in a box. It threads 8-32, so a standard 8-32 hex nut will also fit if you need to replace one.
