Metallics JTEKD15 8 x 1-1/2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.27
$0.27

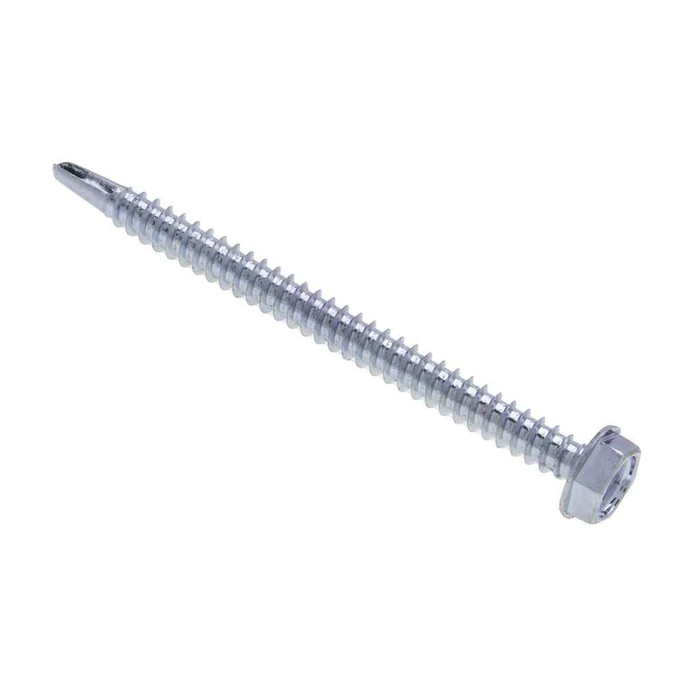

Metallics JTEKD15 8 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 100qty

Metallics JTEKD15 8 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD15
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.27
$0.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 100qty

  • Features

    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • Steel Zinc Material
    • 1/4 Indented Hex Head with Hex Drive
    • #2 Drill Point
    • 8 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Height:
0.096 - 0.11 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.244 - 0.25 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Panel Thickness:
0.035 - 0.100 IN
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.78 lbs
Product Width:
3 in
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Screw Point Type:
Drill Point
Slot Depth:
0.052 - 0.066
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
SAE J78 - 2013
Torsional Strength:
42 lb-in minimum
Washer Od:
0.322 - 0.348 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.272
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD15 – Frequently Asked Questions

1) Are these Metallics drill screws Buy American or ARRA compliant for a government job?
No. The JTEKD15 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project carries a domestic sourcing requirement, this part will not satisfy it.
2) What driver do I need for the Metallics JTEKD15 hex head screw?
A 1/4 inch hex driver. The head is an indented hex washer head measuring 0.244 to 0.25 inch across the flats, 0.272 across the corners, with a hex drive. A 1/4 inch magnetic nutsetter in an impact or screwgun is what installers use on these.
3) Does the JTEKD15 self-drilling screw need a separate washer?
No. The washer is integral to the head. The built-in washer measures 0.322 to 0.348 inch outside diameter and 0.019 to 0.031 inch thick, which spreads the clamp load over sheet metal and strap without adding a loose part on the job.
4) Is a zinc-plated steel self-drilling screw okay for outdoor or damp locations?
The JTEKD15 is steel with a zinc finish, which is a dry-interior plating. It is intended for electrical, plumbing, and HVAC work inside buildings. For exterior, wet, or corrosive locations, specify a stainless self-drilling screw instead of the zinc-plated steel.
5) What is the thread pitch and torsional strength of the #8 JTEKD15 drill screw?
18 threads per inch on a #8 diameter shank, with a minimum torsional strength of 42 lb-in. That torque figure is the limit to keep in mind if you are driving with an impact driver, since over-torquing is how these snap at the point.
6) What standards does the Metallics JTEKD15 self-drilling screw meet?
Dimensions are to ASME B18.6.3-2010 and threads to SAE J78-2013, with steel per AISI 1016-1024 case hardened to Rockwell C32-40. That combination is what a submittal reviewer looks for on sheet metal drill screws.
7) Is a 1-1/2 inch self-drilling screw too long for attaching a box or strap to metal stud?
The JTEKD15 is a #8 by 1-1/2 inch screw, which is long for thin-gauge attachment where only 0.035 to 0.100 inch of steel is being drilled. The extra length is useful when you are going through a bracket, hanger, or stacked material before reaching the panel. For a flush single-layer sheet metal fix, a shorter length in the same JTEKD series is the better call.
8) Do I need to pre-drill a pilot hole for the Metallics JTEKD15?
No pilot hole. It is a Type BSD self-drilling and tapping screw with a drill point, so it cuts its own hole and forms its own thread in one pass. Drill time runs about 2.5 seconds through a 1 mm plate.
9) How many Metallics JTEKD15 screws come in a jar?
They ship in a jar of 100, which is the order minimum. Jar weight is 0.78 lbs.
