Metallics JTSS11 8 x 1-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.26
$0.26

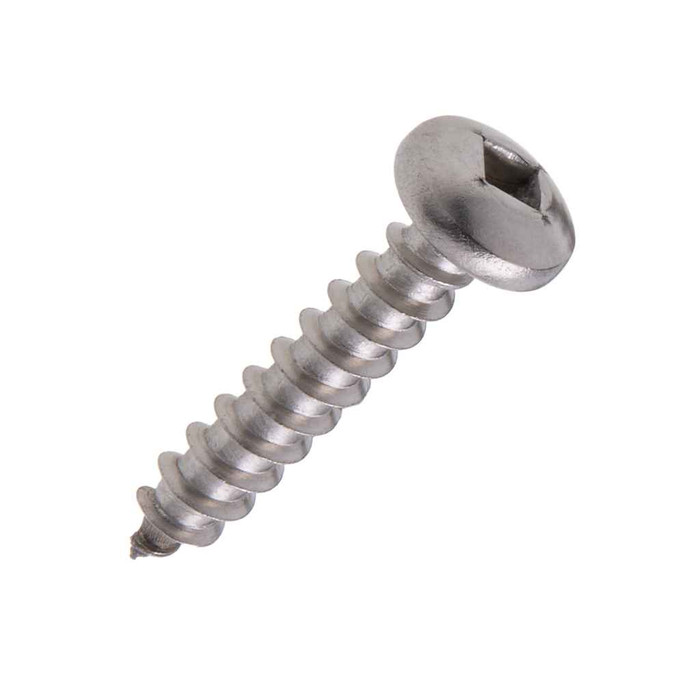

Metallics JTSS11 8 x 1-1/2 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

Metallics JTSS11 8 x 1-1/2 in. Pan Head Square Drive Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSS11
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.26
$0.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1-1/2 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

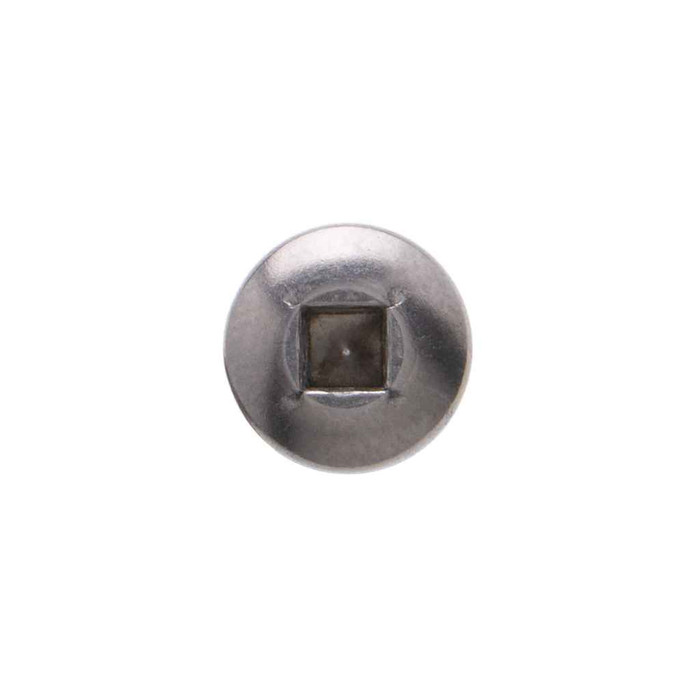

    • Other sizes and quantities available by request | This type of recess has a square center opening, slightly tapered side walls and a conical bottom. | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • 8 Diameter, 1-1/2" Length
    • Steel Zinc Material
    • Pan head with square Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Square
Driver Size:
2R
Fastener Head Height:
0.105 - 0.115 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Square_Drive_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.77 lbs
Product Width:
3 in
Recess Across Flats:
0.112
Recess Penetration Gaging Depth:
0.060 - 0.075
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.4
Torsional Strength:
39 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSS11 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JTSS11 square drive tapping screws?
A #2 square (Robertson) bit. The JTSS11 calls for driver size 2R, and the recess measures 0.112 inch across flats with a gaging depth of 0.060 to 0.075 inch, so a worn or undersized bit will cam out. Keep a couple of #2 square bits in the pouch if you are running a jar of 100.
2) Is a Type A tapping screw the right choice for sheet metal, or do I need a self-drilling screw?
Type A is a sheet metal tapping screw with a gimlet (pointed) tip. It forms its own thread in a pre-punched or pre-drilled hole in thin sheet, and the point helps it find and start the hole, but it will not drill its own pilot through metal. If you need to go through gauge steel with no pilot, you want a self-drilling (Type BSD / TEK style) screw instead. For knockout boxes, straps, and sheet work where the hole is already there, the JTSS11 Type A at 15 threads per inch is what you want.
3) Are Metallics JTSS11 screws acceptable on a Buy American or ARRA funded job?
No. The JTSS11 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. On federally funded or Buy America specified work you will need a domestically sourced fastener instead.
4) What standards do these Metallics tapping screws meet?
Dimensions follow ASME B18.6.3-2013 and the thread form follows ASME B18.6.4. Steel is AISI 1016 to 1024, heat treated to Rockwell C28-38, with a 39 lb-in minimum torsional strength. Note that per Metallics, dimensions for #9 diameter screws fall outside ASME B18.6.4 (the JTSS11 is a #8).
5) Can I use zinc plated tapping screws outdoors or in a damp location?
The JTSS11 is zinc plated carbon steel, which is a mild indoor corrosion finish. It holds up fine in dry interior electrical, plumbing, and HVAC work, which is what Metallics lists it for. For exterior, wet, or coastal exposure, step up to stainless or a hot dip galvanized fastener rather than zinc plate.
6) Is 1-1/2 inches of screw length too long for mounting a device to a single sheet metal box?
Probably, yes. The JTSS11 is a #8 by 1-1/2 inch screw, which is a long grip for thin sheet work, where the excess thread just projects behind the material. Use this length when you are fastening a strap, bracket, or block of material through to the sheet. For a thin-to-thin connection in sheet metal only, drop to a shorter #8 in the same JTSS Type A pan head square drive family.
7) How are Metallics JTSS11 screws packaged and what is the minimum I can buy?
They ship in a jar of 100, and 100 is the order minimum. The jar comes in at 0.77 lbs. If you need a different count or a different diameter and length in the same JTSS series, Metallics offers other sizes and quantities by request.
8) What is the Metallics part number for the #8 x 1-1/2 in. pan head square drive tapping screw?
JTSS11 is the Metallics part number, in the JTSS Type A tapping screw series: #8 diameter, 1-1/2 inch length, pan head, square drive, zinc plated steel.
