Metallics JFW132 8 x 1 in. Fla...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.14
$0.14

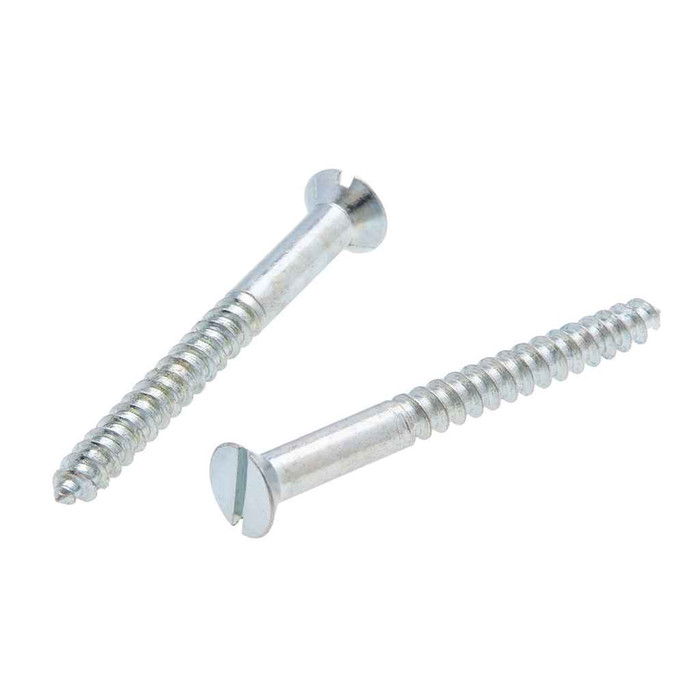

Metallics JFW132 8 x 1 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

Metallics JFW132 8 x 1 in. Flat Head Slotted Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFW132
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.14
$0.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

  • Features

    • Flat Head with Slotted Drive
    • 8 Diameter, 1" Length
    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
1
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.49 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Slot Depth:
0.029 - 0.045
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFW
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFW132 – Frequently Asked Questions

1) Will a #8 x 1 inch flat head wood screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. The JFW132 head measures 0.292 to 0.332 inch across with a head height of 0.100 inch, so it seats flush in a standard 82 degree countersink for a #8 screw. If you are driving into hardwood without a countersink, the head will stand proud.
2) Are these zinc wood screws OK for outdoor or damp locations?
Use them inside. The JFW132 is zinc plated steel, which handles ordinary indoor humidity but is not a weather or treated-lumber fastener. For exterior trim, pressure treated wood or damp mechanical rooms, specify a hot dip galvanized or stainless screw instead.
3) Do I need a pilot hole for these slotted wood screws?
In hardwood, yes. The JFW132 has a tapered point, not a self-drilling or type-17 point, so it relies on a pilot hole to avoid splitting in oak, maple or hardwood trim. In softwood, pine or plywood it will drive without one. Slotted drive also means a straight-blade bit and light pressure, since a slotted bit cams out of the slot more readily than Phillips or square drive.
4) Do Metallics JFW132 wood screws qualify for a Buy American or ARRA job?
Both the Buy American and ARRA fields on the JFW132 carry a C compliance flag, so it is coded as compliant for those procurement requirements. Country of origin is China, which matters on federal work where a domestic-origin substitute is required rather than a compliance code.
5) What standard do these wood screws meet for head and thread dimensions?
The JFW132 is built to ASME B18.6.1 for dimensions, with threads to ASME B18.6.1-1997. If a drawing or submittal calls for a B18.6.1 #8 flat head slotted wood screw, this part number answers that spec.
6) What size screwdriver blade fits the slot on a Metallics JFW132?
The slot runs 0.045 to 0.054 inch wide and 0.029 to 0.045 inch deep, which takes a standard small flat-blade tip, typically a 3/16 to 1/4 inch wide cabinet-tip driver for a #8 screw. A tip that is too thick will not seat in the slot and a tip that is too narrow will chew the slot edges.
7) Can I get the JFW132 wood screw in other lengths or pack sizes?
Other sizes and quantities in the Metallics JFW wood screw line are available by request. The JFW132 itself is fixed at #8 diameter, 1 inch length, zinc plated steel, 100 per jar.
