Metallics JFW134 8 x 1-1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.17
$0.17

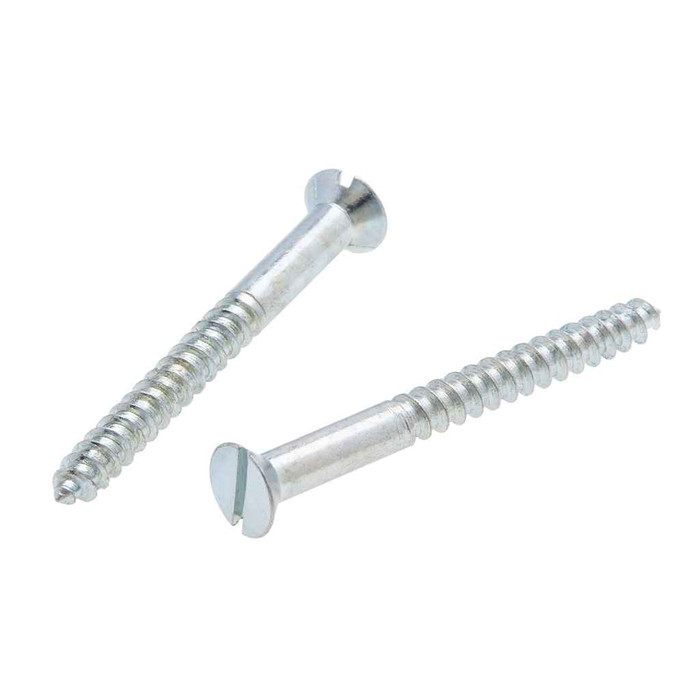

Metallics JFW134 8 x 1-1/2 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

Metallics JFW134 8 x 1-1/2 in. Flat Head Slotted Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFW134
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.17
$0.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1-1/2 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

  • Features

    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • Steel Zinc Material
    • Flat Head with Slotted Drive
    • 8 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
1/1/02
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.76 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Slot Depth:
0.029 - 0.045
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFW
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFW134 – Frequently Asked Questions

1) How many Metallics JFW134 wood screws come in a pack, and can I buy fewer?
The JFW134 ships as a 100-count jar, and 100 CT is the order minimum, so a single jar is the smallest buy. Other sizes and quantities are available by request.
2) Can these #8 x 1-1/2 in. wood screws go into metal studs or masonry?
No. The JFW134 is a wood screw with a tapered point and 15 threads per inch, cut to thread into wood, plywood, and similar soft materials. Steel studs need a self-drilling or sheet metal screw, and masonry needs an anchor or a concrete screw.
3) Will a #8 flat head wood screw sit flush in a countersunk hole for device plates and wood trim?
Yes, that is what the flat head is for. The JFW134 has a flat head measuring 0.292 to 0.332 inch across with a 0.100 inch head height, so it seats flush in a properly countersunk hole rather than standing proud like a pan or round head. If your hole is not countersunk, the head will sit above the surface.
4) Is the Metallics JFW134 a slotted screw or Phillips?
Slotted drive only, with a slot width of 0.045 to 0.054 inch and slot depth of 0.029 to 0.045 inch. You'll want a flat-blade driver sized to that slot. If your crew is running Phillips or square bits exclusively, specify a different drive type instead of this one.
5) How much of the 1-1/2 in. length is actually threaded?
On the JFW134 the thread covers roughly two thirds of the length once the screw is over an inch long, so a 1-1/2 inch screw gives you about an inch of thread with a smooth shank beneath the head. That unthreaded portion lets the top member pull tight against the bottom one. On shorter screws, threads run as close to the head as practical.
6) Are Metallics JFW134 screws suitable for a federally funded or Buy American job?
The JFW134 is flagged compliant for both ARRA and Buy American in Metallics' data, while country of origin is listed as China. If your specification requires domestic melt and manufacture rather than program compliance, confirm which standard the spec is calling for.
7) What standard do these wood screws conform to?
Dimensionally the JFW134 is built to ASME B18.6.1, with threads to ASME B18.6.1-1997. That is the standard a submittal reviewer looks for on a slotted flat head wood screw, so head diameter, head height, and thread form match the published table for a #8.
8) Will zinc plated steel screws hold up outdoors or in a damp location?
Zinc plated steel gives moderate indoor corrosion protection, which is what the JFW134 carries. For sustained exterior exposure, treated lumber, or wet locations, step up to stainless or a hot dip galvanized fastener instead.
9) How heavy is a jar of 100 Metallics JFW134 screws for shipping or a truck stock list?
A jar runs 0.76 lbs, with the container listed at 3 in. by 3 in. by 2.15 in. tall. That makes it easy to carry several sizes on a service van without eating up bin space.
