Metallics JWDS1V 8 x 1/2 in. W...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.11
$0.11

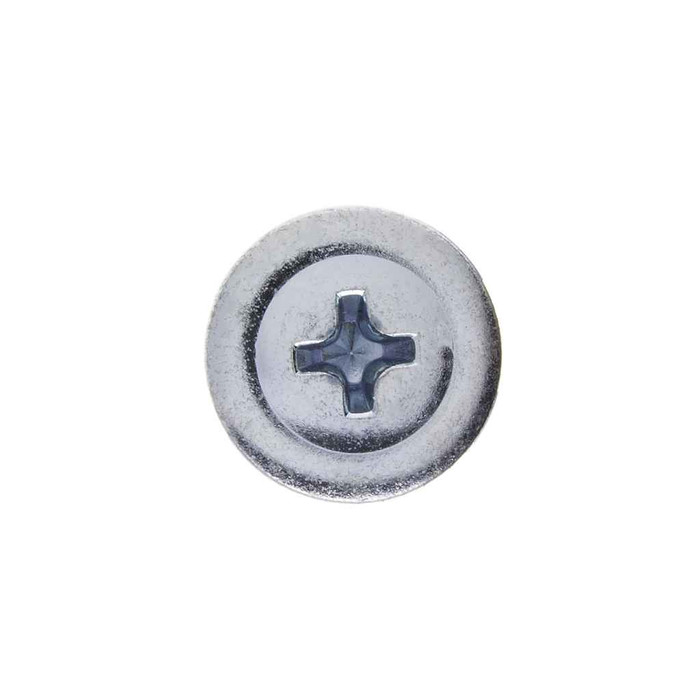

Metallics JWDS1V 8 x 1/2 in. Wafer Head Phillips Drywall Screws - Steel Zinc - 500qty

Metallics JWDS1V 8 x 1/2 in. Wafer Head Phillips Drywall Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JWDS1V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1/2 in. Wafer Head Phillips Drywall Screws - Steel Zinc - 500qty

  • Additional Notes

    • Other sizes and quantities available by request | There is no single standard for Wafer head dimensions. These values are offered as a guide; deviations from these specifications may occur. | This table is only a guide and does not constitute a warranty of any type .

  • Features

    • Steel Zinc Material
    • 8 Diameter, 1/2" Length
    • Wafer Head with Phillips Drive
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
All Self Drilling Screws Offer Economical Benefits:
reduces labour and tooling costs; reduces or eliminates drill bits and taps
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Type:
Wafer
Fastener Head Width:
0.359 - 0.38 in.
Fastener Length:
2-Jan
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Wafer_Hd_Phil_Self-Drill_Tap_Dry_Scr.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.350 - 0.100 IN
Phillips Recess Depth:
0.255
Phillips Recess Diameter:
0.176 - 0.189
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.66 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
SAE J78 - 2013
Torsional Strength:
42 lb-in minimum
Wafer Thickness:
0.025 - 0.035 IN
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Drywall Screw
Type2:
Type BSD Self-Drilling & Tapping Drywall Screw
Series:
WDS
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Drywall Screw
Product Material:
Steel Zinc

Metallics JWDS1V – Frequently Asked Questions

1) Will the Metallics JWDS1V self-drilling drywall screw go through metal studs without pre-drilling?
Yes. The JWDS1V is a Type BSD self-drilling and tapping screw with a drill point, so it drills and taps its own hole in light gauge steel framing. The stated panel thickness range it works in is 0.350 - 0.100 in., and drill time runs about 2.5 seconds on a 1 mm thick plate. No drill bit or tap step needed, which is where the labor savings come from on a stud run.
2) Do these Metallics screws meet Buy American requirements for a federal job?
The JWDS1V is flagged compliant for both Buy American and ARRA, which is what a government, school, or healthcare procurement file usually needs on fasteners. Country of origin is listed as multiple.
3) What size Phillips bit do I need for these #8 wafer head drywall screws?
A #2 Phillips bit. The recess is 0.176 - 0.189 in. across and 0.255 in. deep, which is a standard #2 Phillips profile. Use a fresh bit on high volume work; a worn #2 will cam out before you reach the 42 lb-in minimum torsional strength the screw is rated to.
4) Why use a wafer head instead of a bugle head drywall screw?
The wafer head is a wide, low-profile head, 0.359 to 0.38 in. across with a 0.025 to 0.035 in. head thickness. That broad bearing surface holds thin material and panel edges without pulling through, and the flat underside sits nearly flush. A bugle head is the one you want when you need the head to self-countersink into paper-faced gypsum. For fastening track, backer, or metal-to-metal under a panel, the wafer is the right pick.
5) How many Metallics JWDS1V screws come in a jar?
They ship in a jar of 500, and 500 count is the order minimum. Jar packaging is the practical one for a service truck or a shop bench since you can scoop and reclose without a bag tearing open.
6) What are these drywall screws made of, and will the zinc finish hold up?
Carbon steel to AISI 1016 - 1024 with a zinc finish, case hardened to Rockwell C32-40 so the drill point can cut steel without rolling over. Zinc plating is a dry interior coating. For exterior or damp locations, specify a stainless or coated exterior fastener instead.
7) What thread pitch do these #8 self-drilling screws have, and what standard are they built to?
18 threads per inch on a #8 diameter, built to SAE J78 - 2013, the standard covering steel self-drilling tapping screws. If your submittal calls out J78, this one answers it directly.
8) How much does a 500 count jar of the JWDS1V weigh?
About 1.66 lbs for the jar, with the container measuring 3 x 3 x 3.6 in. Small enough to keep several sizes in a pouch or a bin without eating up bench space.
