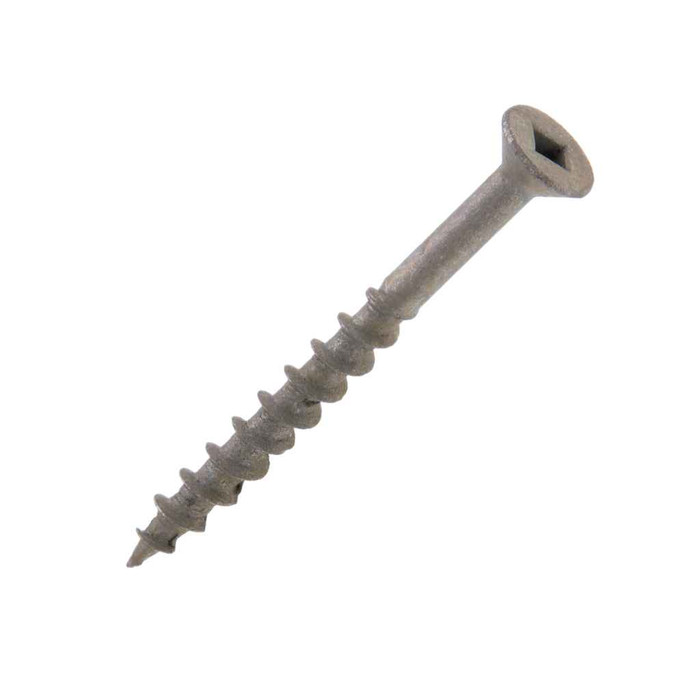

Metallics JRDS2V 8 x 15/8 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - 500qty

Metallics JRDS2V 8 x 15/8 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - Each

(No reviews yet) Write a Review

Model: JRDS2V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.46
$0.46
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 15/8 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - 500qty

  • Kit Components

    • #1 Drive Power Bit

  • Features

    • Screws have a green ceramic coating intended to withstand a salt-spray test of 500 hours.
    • Includes Free Power Bit
    • All-Weather Coating
    • Bugle Head with Square Drive
    • 8 Diameter, 15/8" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the absence of a single industry standard for Bugle Head Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Square
Driver Size:
#2
Fastener Head Height:
0.020 - 0.039 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.363 in.
Fastener Length:
1/5/08
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Material Standard:
AISI 1080
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Coarse_Thrd_Deck_Scr_All_Wthr.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
3.62 lbs
Product Width:
3.5 in
Screw Point Type:
Type 17
Square Recess Depth:
0.064 - 0.075
Square Recess Width:
0.110 - 0.113
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
RDS
Product Finish:
Zinc/All-Weather Coating
Product Details:
Deck Screw
Product Material:
All-Weather

Metallics JRDS2V – Frequently Asked Questions

1) How many screws come in a jar of Metallics JRDS2V deck screws, and can I buy fewer?
The JRDS2V ships as a jar of 500 screws, and 500 each is the order minimum, so it is sold by the full jar rather than loose count. A #1 drive power bit is packed in with it. Jar weight is 3.62 lbs.
2) Will these Metallics deck screws hold up outdoors or in a coastal/damp environment?
The JRDS2V carries a green ceramic all-weather coating over zinc that is intended to withstand a 500 hour salt-spray test, which is why it is sold for exterior deck and wet-location work. For direct contact with pressure-treated lumber in a marine setting, verify the lumber maker's preservative compatibility requirements for your project.
3) Can I use these screws on a federally funded job with Buy American requirements?
No. The JRDS2V is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a job with domestic-content fastener requirements you will need a domestically sourced screw instead.
4) What size square driver bit do I need for Metallics JRDS2V deck screws?
A #2 square driver is the specified size for driving these screws. The recess itself runs 0.110 to 0.113 in. wide and 0.064 to 0.075 in. deep. Note that the bit packed in the jar is a #1 drive power bit, so if your crew is set up on #2 square bits, keep using those.
5) Do I have to pre-drill for these #8 bugle head deck screws?
They use a Type 17 point, which is the auger-style cut point made to self-start and clear chips in wood, so pre-drilling is generally not needed in softwood decking. Threads are coarse UNC spacing at 8 to 10 threads per inch for bite in wood rather than metal.
6) Will a bugle head screw sit flush without countersinking the board?
Yes. The bugle head is a tapered profile that draws itself flush into wood as it seats, so no separate countersink step is needed. Head width runs 0.315 to 0.363 in. and head height 0.020 to 0.039 in., which is what gives the shallow seat. Deck screw dimensions have no single industry standard, so slight deviations are normal.
7) What material are these screws made from?
AISI 1080 is the material standard called out, a high-carbon steel, with a zinc plus all-weather coating over it for corrosion protection. They are not stainless, so where a spec sheet demands stainless fasteners these are not a substitute.
8) Are Metallics JRDS2V deck screws only for decks, or can electricians and HVAC crews use them?
The field application listed is the electrical, plumbing, heating and air conditioning industries, so these get used for general fastening of straps, blocking, backer boards and equipment mounting into wood as much as for deck boards. The coating is what makes them usable outdoors and in damp mechanical spaces.
