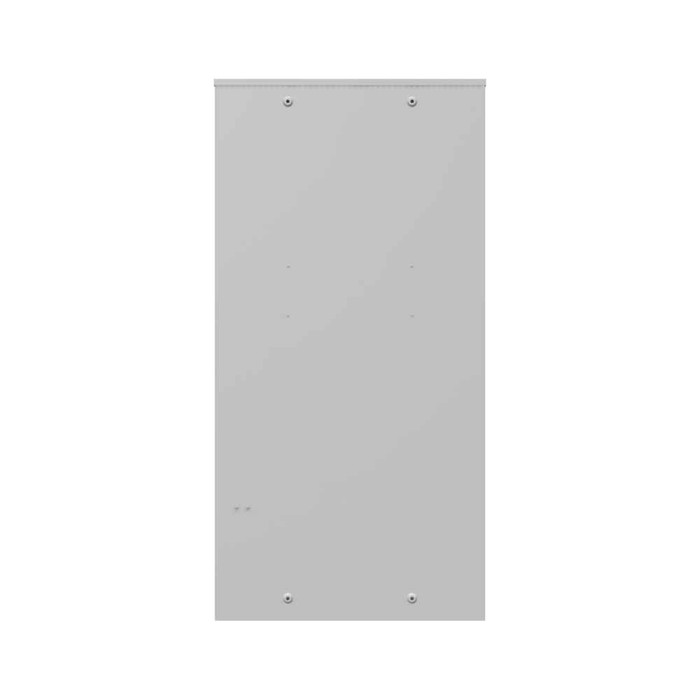

800 Ampere 1phase 600 Volt 24in-48in-11in Painted Steel No Knockouts Lift Off Screw Front .5-13 Studs 3 Lug Per Landing - 4-600kcmil 10k Ampere Interrupting Capacity
Manufacturer Resources
Product Specs
- Amperage Rating:
- Up to 800 Ampere
- Application:
- Termination Cabinet
- Brand Name:
- Milbank
- Color:
- ANSI 61 Gray
- Conductor Material:
- Copper and Aluminum
- Finish:
- Powder Coat Finish
- Height:
- 48 IN
- Insulation Material:
- Polypropylene
- Jacket Material:
- No Jacket Material
- Length:
- 11 IN
- Material:
- G90 Galvanized Steel
- Miscellaneous:
- No Knockouts
- Number Of Conductors:
- 3
- Number Of Meter Positions:
- 1 Position
- Phase:
- 1
- Product Family Code:
- TCAN
- Short Circuit Rating:
- 50000 Ampere
- Size:
- 11L x 24W x 48H
- Standard:
- UL Listed;Type 3R
- Temperature Rating:
- No Temperature Rating
- Type:
- Line to Load Distribution
- Unspsc Number:
- 26121541
- Voltage Rating:
- Up to 600 Volts Alternating Current
- Width:
- 24 IN
- Wire Connection:
- 1/2 Inch Stud Load Side and 4 AWG to 600 kcmil Line Side Lugs
