Product Specs
- Accessory Device:
- No
- Cec T20:
- No
- Cri:
- >80
- Dimming:
- 0-10V
- Dlc:
- No
- Dlc Premium:
- No
- Energy Star:
- No
- Housing Color:
- Bronze
- Input Voltage:
- 120-277
- Led Module Included:
- No
- Legacy Equivalent:
- 320W MH
- Mounting Method:
- Wall Mount
- Not Suitable For Sale In California:
- No
- Product Weight:
- 8.620074 lbs
- Rated Life Hours:
- 50000
- Selectable Color Temperature:
- 3000/4000/5000
- Selectable Lumens Output:
- 11000/9800/7950
- Selectable Power:
- 80/70/55
- Sensor Type:
- Photocell
- T24 Ja8:
- No
- Ul:
- No
- Warranty Years:
- 5
- Wireless Control:
- No
- Product Nominal Size:
- Slim Medium Housing

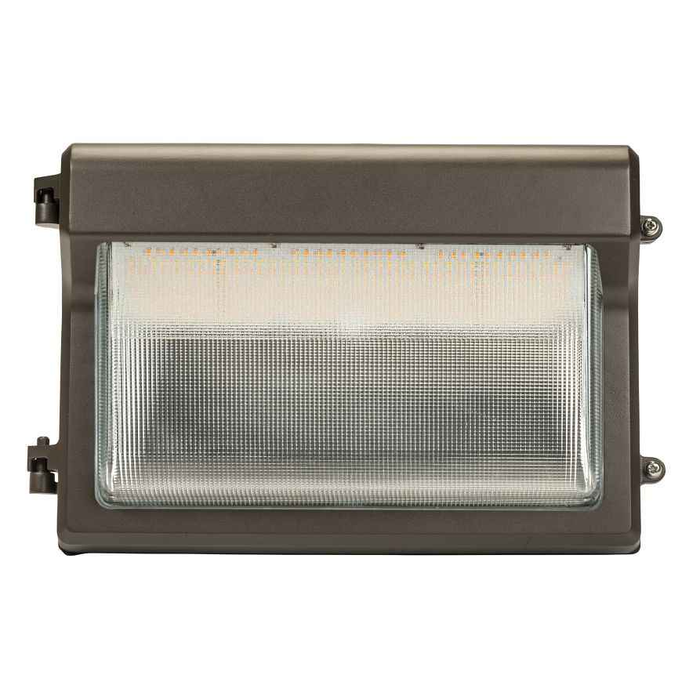

Keystone KT-WPLED80PS-M4-8CSB-VDIM – Frequently Asked Questions
1) Can I set the color temperature on this Keystone slim wall pack, or do I have to order a specific Kelvin?
One part number covers three color temperatures: 3000K, 4000K and 5000K, selected on the fixture. That means you can stock a single SKU across a property where some buildings are specified warm and others neutral, and match the existing fixtures at install. Color rendering is greater than 80 CRI at any setting.
2) Will the Keystone KT-WPLED80PS run on 120V and on 277V?
It accepts 120-277V input, so the same fixture works on single phase 120V at a small commercial building and on 277V in a 480/277 three phase service. No separate voltage version to order.
3) Does this 80W wall pack turn on by itself at night, or do I need a separate photocell?
A photocell is built into the fixture, so it switches on at dusk and off at dawn without an external control or a time clock. You can feed it from an unswitched circuit.
4) Does this Keystone wall pack qualify for a DLC utility rebate?
No. The KT-WPLED80PS-M4-8CSB-VDIM is not DLC listed and not DLC Premium listed, and it is not Energy Star rated. If your utility program requires a DLC qualified product list entry to pay the rebate, you will need a DLC listed wall pack instead.
5) Can the Keystone KT-WPLED80PS-M4-8CSB-VDIM be dimmed, and what kind of control does it need?
The VDIM suffix is 0-10V dimming, so it needs a low voltage 0-10V control pair run to the fixture alongside the line voltage, not a phase cut wall dimmer. It is not a wireless or networked fixture, so dimming is strictly by the wired 0-10V signal.
6) What color is the housing on the Keystone slim open face wall pack?
Bronze. If you are standardizing exterior hardware across a building, bronze is the only finish this model comes in, so plan the other openings and fixtures around it.
7) How long is the LED rated to last on the Keystone KT-WPLED80PS wall pack?
Rated life is 50,000 hours. On a dusk to dawn photocell cycle, roughly 4,000 burn hours a year, that is on the order of a decade of service before lumen depreciation becomes the issue, which is why these replace MH wall packs that need a lamp every year or two.
