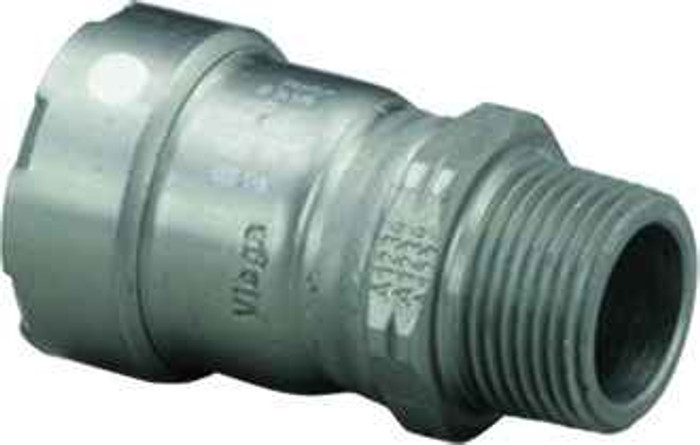

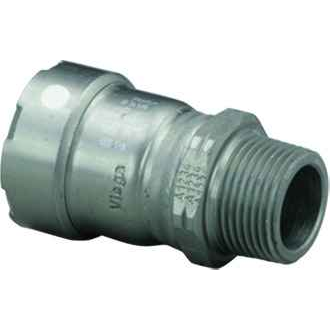

84260 Viega MegaPress adapter Smart Connect technology Carbon steel, 1-1/4'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/4'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Tee
- Product Length:
- 3.701"
- Product Height:
- 2.205"
- Product Weight:
- 0.818 lbs
- Product Width:
- 2.205"
- Product Material:
- Carbon steel
Viega 84260 – Frequently Asked Questions
1) What kind of connection does the Viega MegaPress 84260 adapter have on each end?
The Viega 84260 MegaPress adapter is a P x MPT fitting: one press end and one male pipe thread end, both at 1-1/4 inch. So it presses onto 1-1/4 inch carbon steel pipe on one side and threads into a 1-1/4 inch female NPT port on the other, which is how you transition from pressed pipe to a threaded valve, gauge port, or equipment connection.
2) Can I use the Viega 84260 MegaPress fitting on copper or PEX?
No. The 84260 is a carbon steel MegaPress fitting, made for carbon steel pipe. Copper needs a copper press system and PEX needs a PEX fitting; pressing a carbon steel body onto copper tube is not a valid connection.
3) How much room do I need to fit the Viega 84260 in a tight chase?
The 84260 measures 3.701 inches long and 2.205 inches in both height and width, and weighs 0.818 lbs. Plan clearance beyond that for the press tool jaw, which needs swing room around the pipe at the press end.
4) What is Smart Connect technology on the Viega 84260?
Smart Connect is Viega's feature that leaves an unpressed connection deliberately leaky during pressure testing, so an inspector or installer can spot a joint that was missed before the system is turned over. It does not change how the 84260 is sized or installed, it just makes a skipped press obvious on test.
