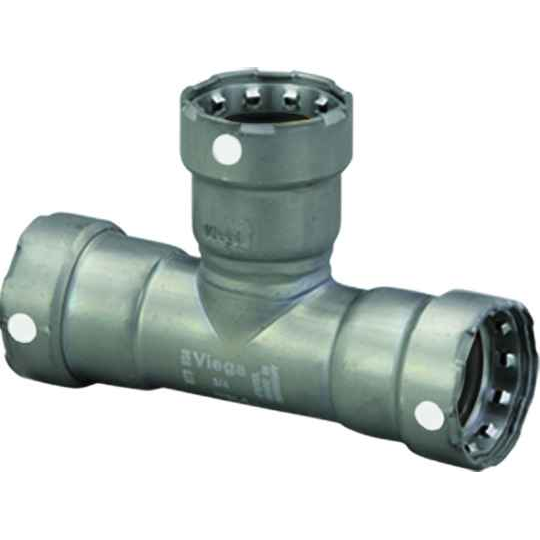

84460 Viega MegaPress tee Smart Connect technology Carbon steel, 2'' x 2'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.638"
- Product Height:
- 2.913"
- Product Weight:
- 2.729 lbs
- Product Width:
- 5.118"
- Product Material:
- Carbon steel
Viega 84460 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 84460 tee connect?
The 84460 MegaPress tee is a reducing tee sized 2 inch x 2 inch x 1-1/4 inch, so the run is 2 inch on both ends and the branch takes 1-1/4 inch. All three outlets are press connections (P1 x P2 x P3), not threaded or grooved, so every joint gets pressed with a jaw or ring sized to that pipe diameter.
2) Can I use the Viega 84460 MegaPress tee on black iron gas or steel pipe?
It's a carbon steel press fitting built for black carbon steel pipe systems, which is the usual run of schedule black iron in mechanical rooms. Carbon steel is not the right body material for potable copper or stainless work; for those lines you want the copper or stainless press family instead of MegaPress.
3) What does Smart Connect technology do on a MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint leaks visibly during pressure testing so it gets found before the system is charged and the ceiling closes up. On a 2 inch x 2 inch x 1-1/4 inch tee like the 84460 that matters, because the branch is easy to miss when you're pressing three joints on one fitting.
4) How much room do I need to fit a 2 inch MegaPress reducing tee between hangers?
Plan the opening around a fitting measuring 7.638 inches long, 5.118 inches wide and 2.913 inches high, then add clearance for the press jaw to close squarely on each of the three sockets. In tight joist bays or against a wall, the branch jaw is usually the one that runs out of swing room, so check that side first.
5) Do I need to thread or weld anything to install the 84460 MegaPress tee?
No cutting oil, no threading, no hot work. All three outlets are press connections, so the install is cut, deburr, mark depth, insert and press. That's the main reason crews pick MegaPress over threaded or welded tees on occupied-building retrofits where a hot work permit is a problem.
6) What is the Viega part number and country of origin for this 2 inch MegaPress tee?
Order it as Viega MegaPress part number 84460. It's made in Germany, which is what submittal reviewers on federal and institutional jobs usually want confirmed before approval.
