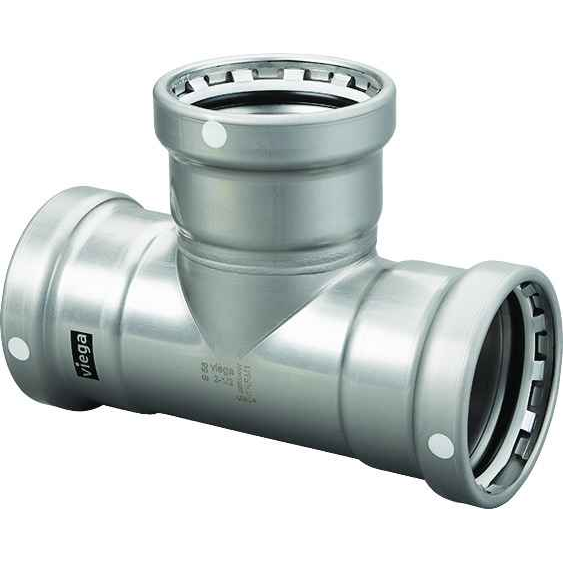

26615 Viega MegaPress tee Smart Connect technology Carbon steel, 4" x 4" x 2-1/2"
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 4" x 4" x 2-1/2"
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 11.102"
- Product Height:
- 5.193"
- Product Weight:
- 5.64 lbs
- Product Width:
- 7.476"
- Product Material:
- Carbon steel
Viega 26615 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 26615 tee connect?
The MegaPress tee, model 26615, is a 4 inch x 4 inch x 2-1/2 inch reducing tee: the run is 4 inch on both ends and the branch outlet is 2-1/2 inch. All three ends are press connections (P1 x P2 x P3), so no end is threaded or grooved.
2) Is the Viega 26615 MegaPress tee carbon steel or stainless?
Carbon steel. The 26615 tee is a carbon steel MegaPress fitting, so it is intended for black iron / carbon steel pipe systems, not for copper or stainless lines.
3) How much clearance do I need around the pipe to press a 4 inch MegaPress tee?
Plan the space off the fitting body itself: the 26615 measures 11.102 inches long, 7.476 inches wide and 5.193 inches high. On top of that footprint you need room to get the press ring and actuator jaw around each of the three ends, so tight joist bays or a run hugging a wall are worth checking before you cut.
4) Can I use the 26615 to drop a 2-1/2 inch branch off a 4 inch main without a reducer?
Yes, that is exactly what it does. The 4 x 4 x 2-1/2 configuration reduces at the branch outlet, so you press the 2-1/2 inch takeoff straight into the tee and skip a separate bushing or reducing coupling on the branch.
5) What is Smart Connect on the Viega MegaPress 26615 and why does it matter on a 4 inch branch?
Smart Connect is Viega's unpressed-connection feature built into the 26615 tee. It is designed so a joint that has not been pressed shows itself during pressure testing rather than passing quietly, which is the main reason crews use it on large-diameter work where a single missed press on a 4 inch run is expensive to find later.
6) Do I need threaded or welded connections for this Viega tee?
No. All three outlets on the 26615 are press ends, so the joints are made cold with a press tool and jaw sized for the fitting. There is no threading, no cutting oil, and no hot work, which is why these get specified in occupied buildings where a welding permit is a problem.
7) Where is the Viega 26615 MegaPress tee made?
Made in Germany. For submittal packages that require country of origin on each fitting line, the 26615 lists Germany.
