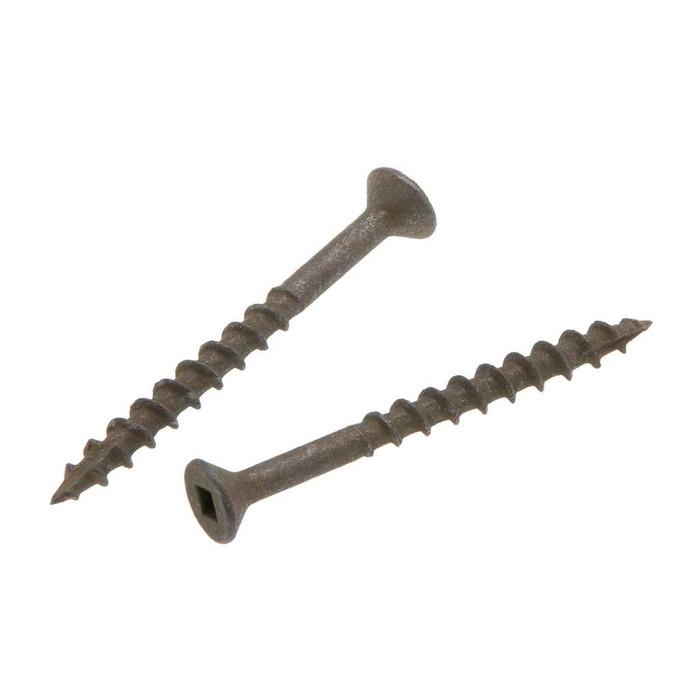

Metallics RDS5M 9 x 3 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - 1000qty

Metallics RDS5M 9 x 3 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - Each

(No reviews yet) Write a Review

Model: RDS5M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,928.57
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9 x 3 in. Bugle Head Square Drive Deck Screws - All-Weather - Type 17 - Coarse Threads - 1000qty

  • Features

    • Screws have a green ceramic coating intended to withstand a salt-spray test of 500 hours.
    • Bugle Head with Square Drive
    • Includes 3 Free Power Bits
    • All-Weather Coating
    • 9 Diameter, 3" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the absence of a single industry standard for Bugle Head Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable.

  • Kit Components

    • #1 Drive Power Bit

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Square
Fastener Head Type:
Bugle
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Material Standard:
AISI 1080
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Coarse_Thrd_Deck_Scr_All_Wthr.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Box
Product Group:
Screws
Product Height:
6 in
Product Length:
7.25 in
Product Weight:
13.95 lbs
Product Width:
6.25 in
Screw Point Type:
Type 17
Sub Division:
Electrical-E H2
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Fasteners
Product Subgroup:
Wood and Construction Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
RDS
Product Finish:
Zinc/All-Weather Coating
Product Details:
Deck Screw
Product Material:
All-Weather

Metallics RDS5M – Frequently Asked Questions

1) Are the Metallics RDS5M deck screws sold individually or only by the box?
The RDS5M comes as a box of 1,000 screws, and 1,000 is also the order minimum. Pack type is box, so you are buying full boxes rather than loose counts. The box runs 13.95 lbs.
2) What driver bit do I need for the Metallics RDS5M square drive deck screws?
They take a #1 square drive bit, and three free power bits ship in the box, so you can start without sourcing a driver separately. Square drive resists cam-out better than Phillips when you are sinking 3 inch screws with an impact driver.
3) Will a #9 x 3 inch deck screw hold in pressure-treated or exterior framing without splitting the board?
The RDS5M has a Type 17 point, which is the auger-style cut point that clears a chip channel as it drives, so it starts without a pilot hole and reduces splitting near board ends. Coarse UNC threads bite in softwood framing and decking. The bugle head self-countersinks flush into wood rather than needing a separate countersink.
4) Are these Metallics deck screws rated for coastal or wet outdoor exposure?
The RDS5M carries a green ceramic all-weather coating over zinc, intended to withstand 500 hours of salt-spray testing. That makes it a coated carbon steel screw for exterior wood work, not stainless. For direct saltwater immersion or ACQ-heavy marine framing, a stainless fastener is the better call.
5) Do the Metallics RDS5M deck screws meet Buy American and ARRA requirements for a government or institutional job?
The RDS5M is flagged compliant for both Buy American and ARRA, which is what a public-works or federally funded spec typically asks for on fasteners. Country of origin is listed as multiple.
6) Can a 3 inch deck screw be used for electrical or HVAC rough-in, or is it strictly for decking?
Metallics lists the RDS5M for the electrical, plumbing, heating and air conditioning trades as well as deck work. The 3 inch length with coarse threads suits anchoring straps, blocking, strut backing and box mounting into wood studs, and the all-weather coating means it holds up in unconditioned or outdoor runs.
7) What steel are Metallics RDS deck screws made from?
AISI 1080 carbon steel is the material standard on the RDS series, a high-carbon steel that gets its holding strength from heat treatment rather than from alloy content. Corrosion protection comes from the coating, not the base metal.
8) Is the Metallics RDS5M a Phillips or square drive screw?
Square drive. Metallics builds the same bugle head all-weather deck screw in a Phillips version as well, so if your crew is already stocked with Phillips bits, order that variation instead rather than mixing drives on one job. The RDS5M itself is square only.
