Metallics JRSDS6 9 x 3 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - 100qty

Metallics JRSDS6 9 x 3 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - Each

(No reviews yet) Write a Review

Model: JRSDS6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.29
$0.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9 x 3 in. Bugle Head Star Drive Deck Screws - Steel Yellow Zinc - Type 17 - Threads - 100qty

  • Features

    • Steel Yellow Zinc Material
    • The deeper thread design offers greater resistance to pull-out forces.

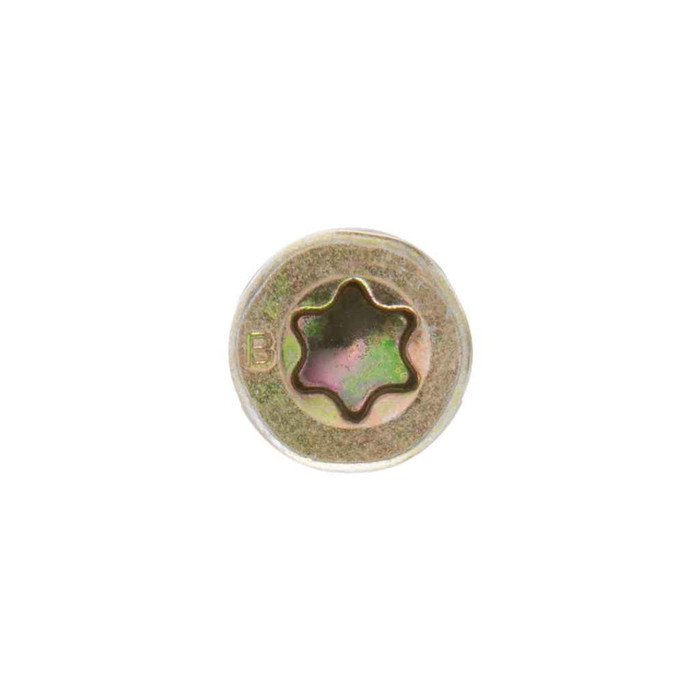

    • Bugle Head with Star Drive Drive
    • 9 Diameter, 3" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the absence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Star (Flat Six-Lobe)

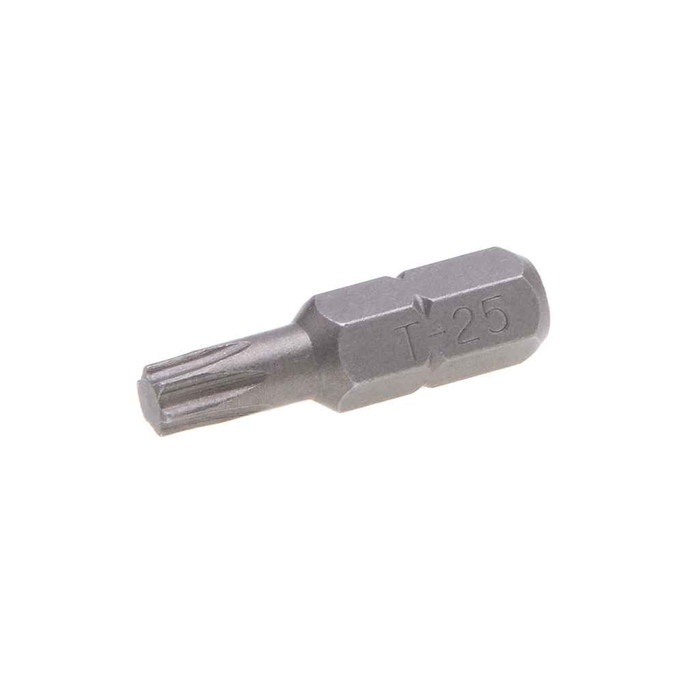

Driver Size:
T25
Fastener Head Height:
0.124 - 0.124 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.316 - 0.358 in.
Fastener Length:
3
Language Code:
EN
Material Standard:
AISI 1018 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Star_Drive_Type_17_Deck_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
1.47 lbs
Product Width:
3.5 in
Screw Point Type:
Type 17
Sub Division:
Electrical-E H2
The Chip Cavity Or Auger Point Enables The Fastener To Drive Especially In Denser Woods:
without pre-drilling a pilot hole.
Thread Per Inch:
9
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Deck Screw
Type2:
Deck Screw
Series:
RSDS
Product Finish:
Yellow Zinc Dichromate
Product Details:
Deck Screw
Product Material:
Steel Yellow Zinc

Metallics JRSDS6 – Frequently Asked Questions

1) Do I have to pre-drill for these 3 inch deck screws in hardwood?
No. The JRSDS6 has a Type 17 auger point, and the chip cavity lets it drive without pre-drilling a pilot hole, including in denser woods.
2) Will a #9 x 3 in. deck screw hold 5/4 decking down to joists?
Yes. At 3 inches long, roughly an inch of the screw carries the 5/4 board and the remainder bites into the joist, which is the normal fastening depth for deck boards. The deeper thread form on the RSDS screws resists pull-out as the boards cup and move.
3) Does the bugle head on these screws countersink flush without a counterbore?
It does in wood. The bugle head is 0.124 in. high and 0.316 to 0.358 in. across, so it pulls itself flush into softwood or composite-free decking as you drive it. On a hard, dense board, back off the clutch at the end so you do not overdrive and mushroom the surface.
4) Is the yellow zinc finish on these Metallics deck screws OK for exterior use?
The JRSDS6 is steel with a yellow zinc dichromate finish. That coating is a sacrificial coating for general exterior and utility work, not a marine or ACQ-rated coating. For treated lumber in wet, high-exposure locations, specify a fastener rated for that chemistry instead.
5) How do the Metallics JRSDS6 screws come packaged and what is the minimum order?
They ship in a jar, with a minimum of 100 count. The packed jar weighs 1.47 lbs.
6) Do these Metallics screws meet Buy American and ARRA requirements for a public job?
The JRSDS6 is flagged compliant for both ARRA and Buy American in the manufacturer's data, with country of origin listed as China. If your specification requires domestic melt and manufacture, confirm which compliance clause your contract is written to before you submit them.
7) What steel are Metallics RSDS deck screws made from?
AISI 1018 to 1022 low carbon steel, case hardened as a deck screw and finished in yellow zinc. That is a driving-strength fastener for wood, not a structural bolt substitute, so use it where a wood screw is specified.
8) What is the thread pitch on the #9 x 3 in. Metallics deck screw?
9 threads per inch, UNC form. Coarse pitch like that clears chips fast in wood and is why the screw drives without a pilot hole, but it also means it is meant for wood, not for threading into metal.
