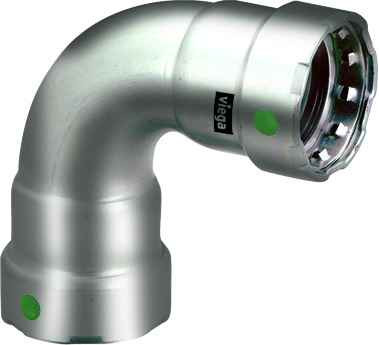

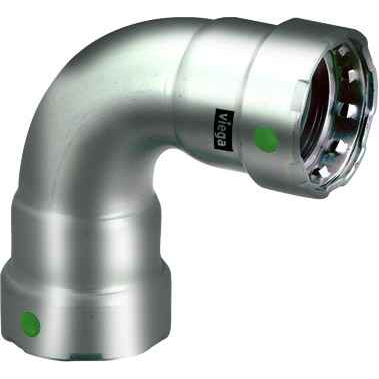

90010 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.268"
- Product Height:
- 1.496"
- Product Weight:
- 0.422 lbs
- Product Width:
- 3.268"
- Product Material:
- 316 stainless steel
Viega 90010 – Frequently Asked Questions
1) Does the Viega 90010 elbow have threaded ends or press ends?
Both ends are press. The connection is listed as P1 x P2, meaning press on both sides, so the 3/4 inch elbow goes directly onto prepared pipe ends with a press tool. If you need to tie into threaded pipe or a threaded valve, you need a MegaPress adapter fitting with an NPT end instead of this elbow.
2) Do I need a special tool to install the Viega 90010 MegaPress elbow?
Yes. Both ends are press connections (P1 x P2), so you need a press tool with the correct 3/4 inch MegaPress jaw. There is nothing to thread or solder, and no additional gaskets or rings are supplied separately, the sealing element is already in the fitting. Pipe ends need to be cut square, deburred and marked to depth before pressing.
3) What does Smart Connect mean on a Viega MegaPress fitting?
Smart Connect is the feature built into the sealing element that lets an unpressed connection leak visibly during pressure testing. On a job with dozens of 3/4 inch joints, that is how you find the one you skipped before the wall closes up, rather than after.
4) How much space does the Viega 3/4 inch MegaPress 90 degree elbow take up?
The fitting measures 3.268 inches in length, 3.268 inches in width and 1.496 inches in height, and weighs 0.422 lbs. Use the 3.268 inch figures when you are laying out a turn in a tight joist bay or against a wall, and remember you also need clearance around the joint for the press jaw to close.
