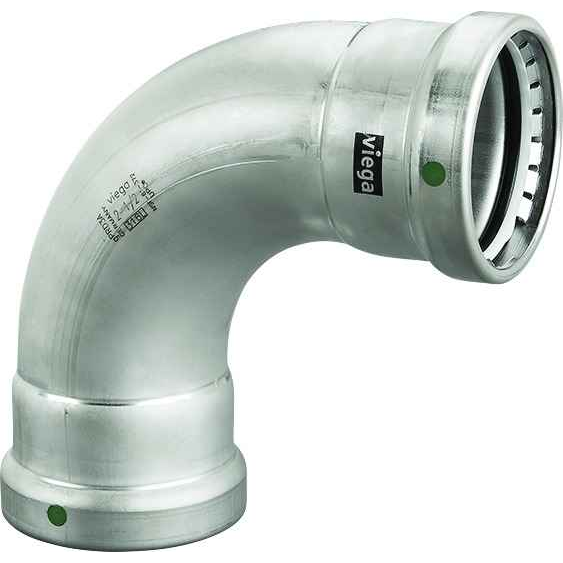

90510 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 11.772"
- Product Height:
- 5.193"
- Product Weight:
- 7.807 lbs
- Product Width:
- 11.772"
- Product Material:
- 316 stainless steel
Viega 90510 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 90510 elbow fit?
The MegaPress 90510 is a 4 inch by 4 inch elbow, so both ends press onto 4 inch pipe. It is a press fitting with a P1 x P2 connection on both ends, meaning no threading, welding or grooving at either joint.
2) Does the 4 inch MegaPress 90510 need a special press tool?
Yes. A 4 inch press joint is beyond the range of a standard compact press tool jaw. You will need the large-diameter press tool and the matching 4 inch MegaPress press ring and actuator rather than a handheld jaw set. Neither the tool nor the ring comes with the fitting.
3) Can I use the Viega 90510 stainless elbow on a carbon steel pipe run?
Think carefully before you do. The elbow itself is 316 stainless, and joining stainless directly to a carbon steel system puts dissimilar metals in contact, which invites galvanic corrosion at the joint. For a carbon steel run, use the carbon steel MegaPress fittings; keep the 316 version on stainless pipe or where a dielectric transition is designed in.
4) What does Smart Connect technology on the Viega 90510 actually do for me on the job?
Smart Connect is Viega's unpressed-joint feature: an unpressed fitting leaks visibly during pressure test so you find the missed connection before the system is closed up. On a 4 inch stainless run with dozens of joints, that is what keeps you from chasing a hidden miss behind finished wall.
