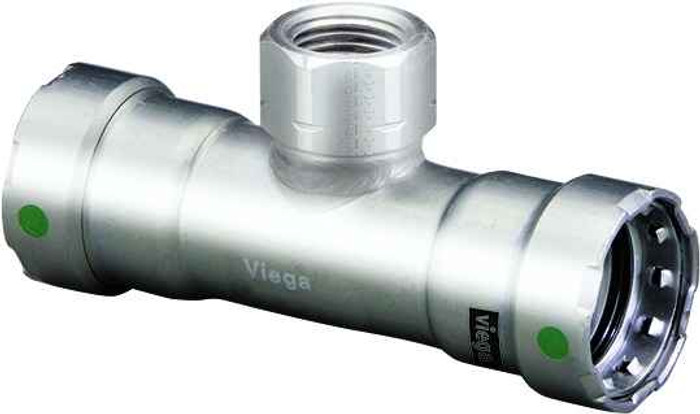

Viega 90190 MegaPress tee Smart Connect technology 316 stainless steel, 1'' x 1'' x 1/2''

(No reviews yet) Write a Review

Model: 90190
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$385.71
$335.71
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
90190 Viega MegaPress tee Smart Connect technology 316 stainless steel, 1'' x 1'' x 1/2''

Manufacturer Resources

Product Specs

Connection Type:
P1 x P2 x FPT
Material Type:
316 Stainless Steel
Product Dimension:
1'' x 1'' x 1/2''
Department:
Plumbing
Product Group:
Plumbing Fittings
Product Subgroup:
Tees
Product Type:
Tee
Product Length:
5.256"
Product Height:
1.78"
Product Weight:
0.844 lbs
Product Width:
2.594"
Product Material:
316 stainless steel

Viega 90190 – Frequently Asked Questions

1) What are the three connections on the Viega 90190 MegaPress tee?
The Viega 90190 is a reducing tee with two 1 inch press ends on the run and a 1/2 inch female threaded branch, listed as P1 x P2 x FPT in the 1 x 1 x 1/2 inch configuration. So the run presses onto 1 inch pipe and the branch takes a male-threaded nipple, gauge, sensor, or drain fitting screwed in rather than pressed.
2) Can I use a MegaPress 316 stainless tee on black iron or carbon steel pipe?
MegaPress fittings press onto black, galvanized, and carbon steel pipe, and the 90190 is the 316 stainless version of that fitting. The 316 body is chosen where the fitting itself needs better corrosion resistance than a carbon steel fitting gives, for example in damp mechanical rooms or more aggressive media. The press ends are sized for 1 inch pipe on the run.
3) What does Smart Connect do on a Viega MegaPress fitting?
Smart Connect is the feature that lets an unpressed connection leak intentionally during pressure testing, so an installer finds the joint they missed before the system is put into service. On a tee like the 90190 it applies to both 1 inch press ends; the 1/2 inch threaded branch is a conventional screwed joint and is not covered by it.
4) Is the Viega 90190 MegaPress tee the right fitting for adding a gauge or sensor tap to a 1 inch steel line?
That is exactly what the 1 x 1 x 1/2 inch configuration is for. The 1 inch press ends keep the existing run continuous, and the 1/2 inch FPT branch accepts a threaded gauge, thermowell, sensor, or drain valve without any further adapters on the branch side.
5) What is the Viega 90190 tee made of and where is it manufactured?
The body is 316 stainless steel and the fitting is made in Germany. For procurement records, the manufacturer part number is 90190 and the shipping weight of the single fitting is 0.844 lbs.
6) Will a 316 stainless MegaPress tee work on a potable or a mechanical system?
Material-wise the 90190 is 316 stainless steel, the grade specified where corrosion resistance matters more than on a carbon steel fitting. Which service it may be used in depends on the sealing element and the approvals for that specific press fitting, so match the fitting to the media called out on your drawing rather than to the body material alone.
