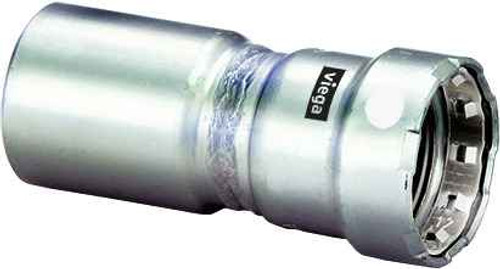

90355 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 3/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Length:
- 2.957"
- Product Height:
- 1.264"
- Product Weight:
- 0.238 lbs
- Product Width:
- 1.264"
- Product Material:
- 316 stainless steel
Viega 90355 – Frequently Asked Questions
1) What do the P x FTG ends on the Viega 90355 MegaPress reducer mean for how it installs?
P x FTG means one end is a press socket that accepts the pipe, and the other is a fitting-takeoff end sized to slip into the socket of the next press fitting or coupling. So the 3/4 inch side presses onto 3/4 inch pipe, and the 1/2 inch FTG end goes into a 1/2 inch press socket rather than over 1/2 inch pipe. Get that orientation wrong and the joint will not go together.
2) Is the Viega 90355 reducer stainless or carbon steel, and does that matter for the pipe I am joining?
It is 316 stainless steel. Match the fitting to the pipe material: a 316 stainless press fitting belongs on stainless pipe systems, not on black iron or carbon steel lines, where the carbon steel MegaPress fittings are the correct choice. 316 is the molybdenum-bearing grade, so it holds up better in chloride-bearing and washdown environments than 304.
3) How much room do I need to fit the Viega 90355 3/4 x 1/2 reducer in a tight chase?
The body runs 2.957 inches long and 1.264 inches across in both height and width, so it drops into tight stud bays and ceiling chases. Leave clearance beyond that for the press tool jaw to wrap the socket squarely, which is usually the real constraint on a cramped wall, not the fitting itself.
4) What does Smart Connect technology on this Viega MegaPress fitting actually do for me on site?
Smart Connect is Viega's feature that makes an unpressed connection show itself during testing, so a joint you missed leaks visibly instead of hiding in a wall. On a multi-story job with dozens of reducers, that is what lets you find the one you skipped before the drywall goes on.
5) Do I need a torch or threading to install the Viega 90355?
No. It is a press fitting, so the joint is made cold with a press tool and jaw, no flame, no cutting oil, no threading. That is why it gets specified for occupied buildings and hot-work-restricted sites. You still need the correct jaw for the socket size on each end, and the pipe cut square and deburred.
6) Is this Viega 90355 a reducing tee or a straight reducer?
It is catalogued and dimensioned as a reducer, 3/4 inch by 1/2 inch, with a press end and an FTG end. If you need a branch takeoff, order a MegaPress tee instead; this part changes size in line.
