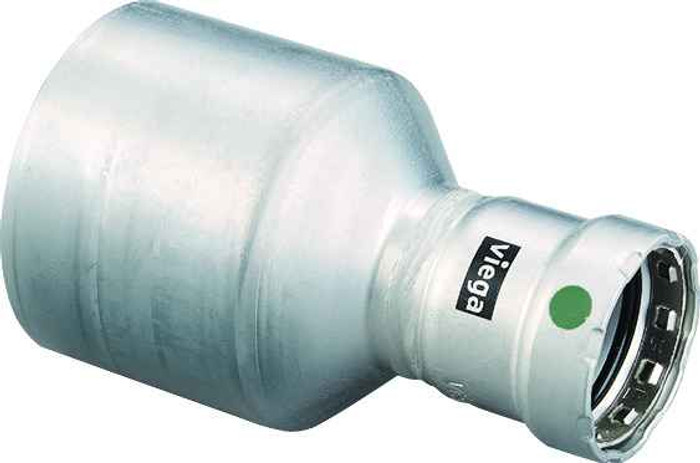

90700 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 4'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 4'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Length:
- 7.339"
- Product Height:
- 4.5"
- Product Weight:
- 3.28 lbs
- Product Width:
- 4.5"
- Product Material:
- 316 stainless steel
Viega 90700 – Frequently Asked Questions
1) What does the FTG x P connection on the Viega 90700 MegaPress reducer mean for how it installs?
The Viega 90700 is an FTG x P reducer: the FTG (fitting) end is sized to slip inside the next fitting's press socket, and the P end is a press socket that accepts pipe. So one side goes into a fitting, the other side takes the pipe. Both connections are press, made with a press tool and jaws, not threaded or welded.
2) Is the Viega 90700 MegaPress fitting stainless or carbon steel?
It is 316 stainless steel. That matters on the job because MegaPress also comes in carbon steel for black iron pipe; the 316 version is what gets specified where corrosion resistance is needed. The 90700 is made in Germany.
3) What size pipe does the Viega 90700 MegaPress reducer connect?
It is a 4 inch by 3 inch reducer, so it takes you from 4 inch down to 3 inch in one fitting. With FTG x P ends, the 4 inch side is the arrangement you need to confirm against your run before ordering.
4) What is Smart Connect on the Viega 90700 and why does it matter during pressure test?
Smart Connect is a feature built into the MegaPress fitting that lets an unpressed connection be identified during testing, so a joint that was missed shows up before the system is signed off. On a 4 inch by 3 inch reducer buried in a header, that is the difference between finding the miss at test and finding it after the ceiling closes.
5) Do I need to thread or weld pipe to install the Viega 90700?
No. Both ends are press connections, so the joints are made cold with a press tool. No threading, no cutting oil, no hot work permit, which is why these get used in occupied buildings and plant retrofits where welding is a problem.
6) How heavy is the Viega 90700 MegaPress 4 inch by 3 inch reducer for support planning?
3.28 lbs for the fitting alone. On large-diameter stainless runs, account for that plus the pipe and contents when you set hanger spacing either side of the reduction.
7) How do I order the exact Viega MegaPress 4 x 3 reducer?
Order by Viega part number 90700. There is a single configuration, 4 inch by 3 inch, FTG x P, in 316 stainless, so there is no finish or end-option to specify.
