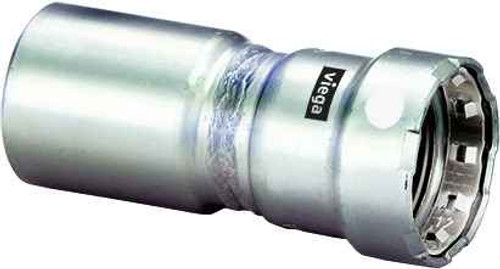

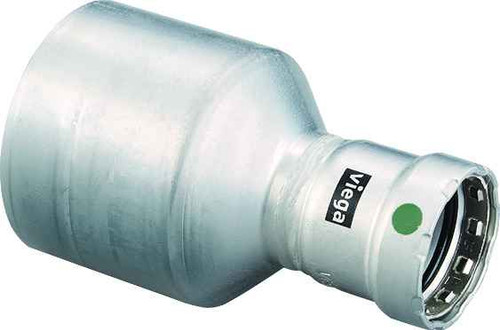

90690 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 4'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 4'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Tee
- Product Length:
- 7.323"
- Product Height:
- 4.5"
- Product Weight:
- 2.911 lbs
- Product Width:
- 4.5"
- Product Material:
- 316 stainless steel
Viega 90690 – Frequently Asked Questions
1) What do FTG x P connections mean on the Viega 90690 MegaPress reducer?
The 90690 is an FTG x P fitting. The FTG (fitting) end is sized to slip into another fitting's press socket like a length of pipe would, while the P end is a press socket that takes the pipe. So you press onto 4 inch pipe or a 4 inch fitting on one side and 2 inch pipe on the other, with no threading or welding.
2) Is the Viega 90690 reducer stainless or carbon steel?
It is 316 stainless steel, the molybdenum-bearing grade used where corrosion resistance matters more than on standard 304. That makes the 90690 the stainless MegaPress line, not the carbon steel one, so match it to a stainless piping system rather than black iron.
3) What size pipe does the Viega 90690 MegaPress fitting reduce between?
It takes 4 inch on the large end down to 2 inch on the branch side. If your run is a different combination, you need a different MegaPress reducer; this one is fixed at 4 x 2.
4) How much space do I need to fit the Viega 90690 in a tight chase?
Plan for a 7.323 inch overall length with a 4.5 inch height and 4.5 inch width envelope. On top of that, a press fitting needs clearance for the jaw ring around the socket, so measure for the tool as well as the fitting body when you are working inside a wall or close to a joist.
5) What is Smart Connect on Viega MegaPress fittings and why does it matter on a 4 inch fitting?
Smart Connect is a feature of the sealing element that lets an unpressed joint leak during pressure test, so the installer finds the connection they missed instead of discovering it after the ceiling closes. On a large 4 x 2 reducer buried in a mechanical room that is the difference between a quick walk-down and tearing out finished work.
