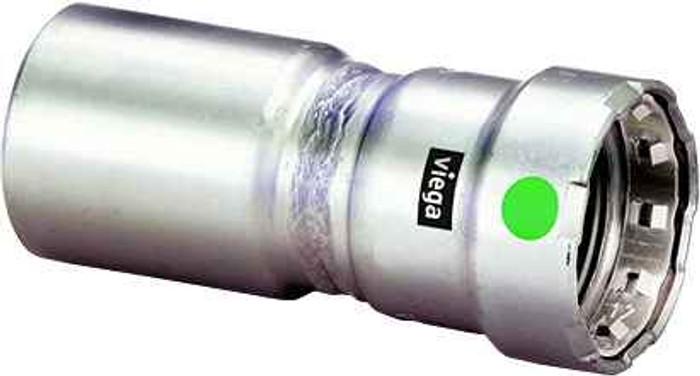

90380 Viega MegaPress reducer Smart Connect technology 316 stainless steel, 2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Tee
- Product Length:
- 4.512"
- Product Height:
- 2.374"
- Product Weight:
- 0.915 lbs
- Product Width:
- 2.374"
- Product Material:
- 316 stainless steel
Viega 90380 – Frequently Asked Questions
1) What size pipe does the Viega 90380 MegaPress reducer connect?
The Viega 90380 is a 2 inch by 1 inch reducing MegaPress fitting in 316 stainless steel. It carries a P x FTG connection: the 2 inch end is a press socket that accepts 2 inch pipe, and the 1 inch end is an FTG (fitting) end sized to press into a 1 inch press socket rather than over pipe. Get that orientation right before you cut, because the FTG end will not receive pipe.
2) Is the Viega MegaPress 90380 suitable for corrosive or wet environments?
It's made from 316 stainless steel, the grade specified where chloride exposure and corrosion resistance matter, so it holds up better than carbon steel fittings in damp mechanical rooms, coastal sites, and wash-down areas. Pair it with stainless pipe and stainless supports to avoid dissimilar metal contact.
3) How much room do I need to fit the Viega 90380 in a tight joist bay?
The 90380 measures 4.512 inches long and 2.374 inches on the other two axes, and it weighs 0.915 lbs. Add clearance on top of that for the press tool jaw to swing around each socket, which is usually the real constraint in a joist bay or against a wall, not the fitting body itself.
4) Do I need a special press tool for the 2 inch end of this MegaPress fitting?
Yes. MegaPress joints are made with a Viega press tool and the jaw or ring matched to the nominal size, so a 2 x 1 inch reducer needs both a 2 inch jaw or press ring and a 1 inch jaw for the FTG side. Threading or soldering is not an option with this fitting, both ends are press connections.
5) Can I use this 316 stainless MegaPress fitting on black iron or copper pipe?
Pair it with stainless steel pipe. The 90380 is a 316 stainless steel press fitting, and the press socket and sealing element are sized for the pipe system it belongs to, so it is not a substitute for a carbon steel MegaPress fitting on black iron or a copper press fitting on type L tube.
6) What does Smart Connect technology do on the Viega 90380 reducer?
Smart Connect is Viega's feature that lets an unpressed connection leak intentionally during pressure testing, so an installer finds the missed joint on the test rather than after the ceiling closes. On a large job with dozens of press connections it is the fastest way to prove every socket got crimped.
