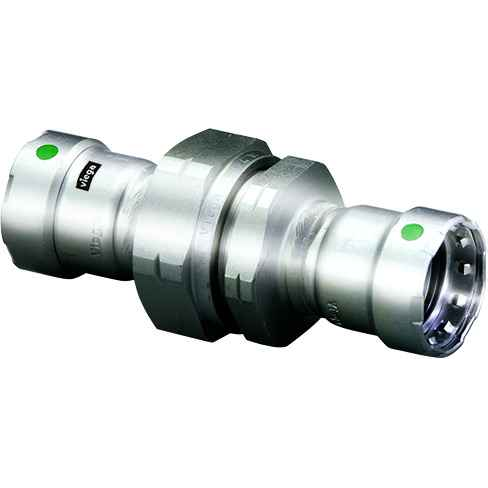

90435 Viega MegaPress union Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.827"
- Product Height:
- 3.307"
- Product Weight:
- 3.956 lbs
- Product Width:
- 3.524"
- Product Material:
- 316 stainless steel
Viega 90435 – Frequently Asked Questions
1) What size pipe does the Viega 90435 MegaPress fitting press onto?
The Viega MegaPress 90435 is a 2 inch x 2 inch fitting, with both ends a press connection (P1 x P2). It presses directly onto 2 inch black iron, carbon steel or similar schedule pipe using a MegaPress jaw and press tool. Both ends are press, so there is no thread to cut and no welding.
2) Is the Viega 90435 MegaPress fitting stainless steel or carbon steel?
It is 316 stainless steel. That is the corrosion-resistant grade, so it holds up better than carbon steel press fittings in wet, chemical or coastal environments and is the version specified where the carbon steel MegaPress body would not be acceptable.
3) What does Smart Connect technology do on a MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: a deliberate leak path at the sealing element so that any fitting you missed shows up during pressure test instead of after the walls close. On the 90435 it means an inspector or plumber can find an unpressed 2 inch joint on the system test rather than on a callback.
4) How much clearance do I need to install the Viega 90435 2 inch MegaPress fitting?
The fitting body measures 7.827 inches long, 3.524 inches wide and 3.307 inches high, so plan your rough-in and hanger spacing around that envelope plus room for the press jaw to close around the collar. In tight ceiling cavities or against structure, that jaw swing is usually what decides the layout, not the fitting itself.
5) Do I need to order anything else to make up a Viega MegaPress 2 inch joint?
The fitting itself comes complete with its sealing element installed. What you supply is the press tool and the correct 2 inch MegaPress jaw or ring, plus pipe cut square and deburred with the depth marked. No solder, no thread cutting, no solvent.
6) Can I use a press fitting instead of welding or threading 2 inch steel pipe?
That is exactly what MegaPress is for. Threading 2 inch steel means a machine, oil and cleanup; welding means a hot work permit in most occupied buildings. A press joint is cold work, done in seconds per connection, which is why these get specified for retrofit work in occupied healthcare, multi-family and institutional spaces. Pick the 316 stainless version like the 90435 when corrosion resistance matters; carbon steel MegaPress is the usual choice on dry black iron gas or hydronic lines.
7) What is the Viega MegaPress part number and where is it made?
Order it as Viega part 90435, the 2 inch x 2 inch MegaPress fitting in 316 stainless steel. It is made in Germany. If you are standardizing a building on one fitting system, that MPN is what goes on the submittal.
