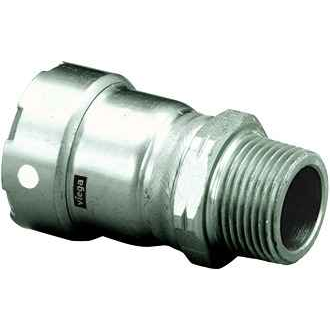

91235 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.898"
- Product Height:
- 2.894"
- Product Weight:
- 1.311 lbs
- Product Width:
- 2.992"
- Product Material:
- 316 stainless steel
Viega 91235 – Frequently Asked Questions
1) What connections does the Viega MegaPress 91235 adapter have?
The Viega 91235 is a 2 inch press by 2 inch male pipe thread adapter. The press end goes onto 2 inch carbon or stainless pipe with a press tool and jaw, and the threaded end screws into a 2 inch female NPT port, so it is the transition you use between pressed pipe and threaded equipment, valves, or gauges.
2) Is the Viega 91235 press adapter stainless or carbon steel?
It is 316 stainless steel, the more corrosion resistant of the two MegaPress body materials. That matters if the line runs outdoors, in a coastal or wash-down environment, or carries media that would attack a carbon steel fitting.
3) Does the Viega 91235 have Smart Connect, and what does that actually do on the job?
Yes, the 91235 adapter is built with Viega's Smart Connect feature. During pressure test an unpressed connection leaks deliberately, so the installer finds the missed joint before the system is put into service rather than after the ceiling is closed. It does not replace pressing the joint, it just makes a skipped one obvious.
4) How much space do I need to fit the 2 inch MegaPress adapter in a tight chase?
The fitting measures 3.898 inches long, 2.992 inches wide and 2.894 inches high, and weighs 1.311 lbs. Plan clearance beyond that for the press jaw itself, which needs room to open and close fully around the press end.
5) Can I use a threaded MegaPress adapter instead of welding a nipple onto the line?
That is exactly what the 91235 is for. Instead of cutting, threading or welding at the connection point, you press the 2 inch end onto the pipe cold and land the 2 inch male NPT into the existing threaded component. No hot work, which is often the deciding factor in occupied buildings.
6) Where is the Viega 91235 MegaPress fitting made?
Made in Germany. If your submittal package requires country of origin documentation on mechanical fittings, that is what gets recorded for this adapter.
