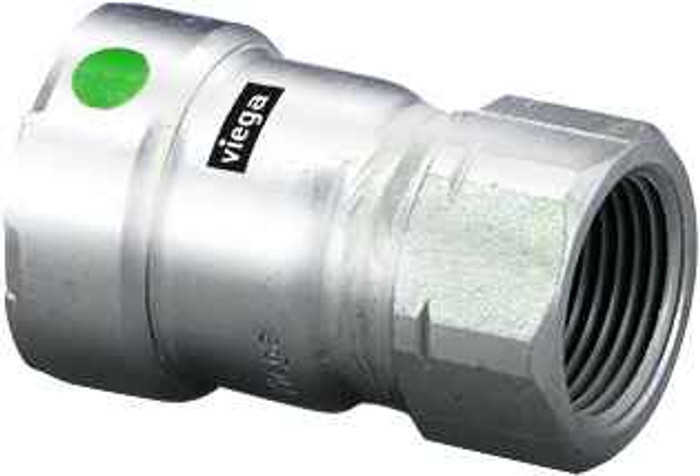

90280 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 3.437"
- Product Height:
- 2.894"
- Product Weight:
- 1.261 lbs
- Product Width:
- 2.992"
- Product Material:
- 316 stainless steel
Viega 90280 – Frequently Asked Questions
1) What connections does the Viega 90280 MegaPress adapter have?
The Viega 90280 is a press-by-female-pipe-thread adapter: one 2 inch MegaPress press end and one 2 inch FPT threaded outlet. So it takes you off pressed carbon or stainless pipe and into a 2 inch male-threaded component, valve nipple, or gauge connection without welding or cutting threads on site.
2) Can I thread a 2 inch valve or nipple straight into the Viega 90280?
Yes. The threaded side is a 2 inch female pipe thread, so any standard 2 inch male NPT nipple, valve, or union screws directly in with the thread sealant or tape you normally use. The other end presses, so no thread is cut in the field on the pipe side.
3) Is the Viega 90280 MegaPress fitting stainless or carbon steel?
It is 316 stainless steel. That is the corrosion-resistant grade, so it holds up better than carbon steel in damp mechanical rooms, coastal air, and wash-down or mildly aggressive service. Match the sealing element and system to the pipe you are pressing onto.
4) What is Smart Connect on this Viega MegaPress adapter and why does it matter on an inspection?
Smart Connect is Viega's unpressed-connection feature: an unpressed fitting leaks visibly during pressure test so the installer can find it before the system is signed off. On a large job with dozens of 2 inch joints that is the difference between catching a missed press at test and chasing it after insulation goes on.
5) How much room do I need to fit a 2 inch Viega 90280 adapter in a tight chase?
Plan for a body measuring 3.437 x 2.992 x 2.894 inches (length, width, height as published) and the clearance for the press jaw or ring around the press end. In a congested chase the jaw swing, not the fitting, is usually what decides whether you can press it in place or have to build the assembly out and set it as a unit.
6) What exactly do I order to get this part, and is there more than one version?
One part number covers it: Viega 90280, a 2 inch by 2 inch MegaPress press-to-FPT adapter in 316 stainless. There are no size, finish, or seal variations to pick on this model, so the model number alone is the order.
7) Where is the Viega 90280 MegaPress fitting made?
Made in Germany. For public and institutional work where country of origin has to be documented on submittals, that is the origin to list for the 90280.
