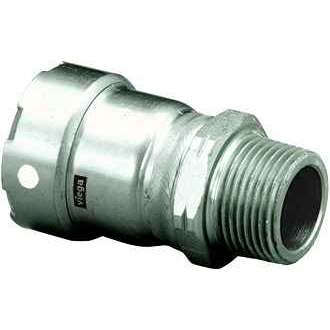

91205 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.531"
- Product Height:
- 1.264"
- Product Weight:
- 0.214 lbs
- Product Width:
- 1.264"
- Product Material:
- 316 stainless steel
Viega 91205 – Frequently Asked Questions
1) What kind of connection does the Viega MegaPress 91205 adapter have on each end?
The 91205 is a press-by-male-thread adapter: one end is a MegaPress press socket, the other is 1/2 inch male pipe thread (MPT). You press the socket onto 1/2 inch carbon or stainless pipe with a MegaPress jaw, then thread the MPT end into a female-threaded valve, gauge port, or equipment connection. Both sides are 1/2 inch.
2) Is the Viega 91205 adapter stainless or carbon steel, and can it be used on a corrosive or outdoor line?
It is 316 stainless steel, the marine-grade alloy with molybdenum added for chloride resistance. That makes it the version used where carbon steel press fittings would corrode: coastal and outdoor runs, washdown areas, chemically aggressive process lines. If you are pressing into a black iron or carbon steel system, you want the carbon steel MegaPress line instead, not this one.
3) What does Smart Connect mean on a Viega MegaPress fitting, and does it mean I can skip inspecting joints?
Smart Connect is Viega's unpressed-joint feature: an unpressed fitting leaks visibly during pressure testing so the installer finds it before the system is closed up. It flags a missed press, it does not replace your pressure test or walkdown. The 91205 adapter carries it.
4) How much space do I need to fit the Viega 91205 1/2 inch press adapter in a tight chase?
Overall it runs 2.531 inches long with a 1.264 inch height and width, so the body itself is compact. The constraint in a chase is almost never the fitting, it is the press tool jaw: you need enough clearance around the press socket to close the jaw fully and complete the cycle. Lay out the jaw swing, not just the 2.531 inch length.
5) Do I need a special press tool or jaw for a 1/2 inch MegaPress stainless fitting?
Yes. MegaPress presses onto steel pipe and uses MegaPress jaws and rings sized to the fitting, not the copper ProPress jaws, and they are not interchangeable. For the 91205 you need the 1/2 inch MegaPress jaw on a compatible press tool. The threaded end of this adapter needs no tool, just a wrench and sealant.
6) Where is the Viega 91205 MegaPress fitting manufactured?
Made in Germany. For spec packages and submittal sheets that call out country of origin, that is the entry. It is a 316 stainless MegaPress adapter at 0.214 lbs per piece, useful if you are costing out freight on a large fitting count.
