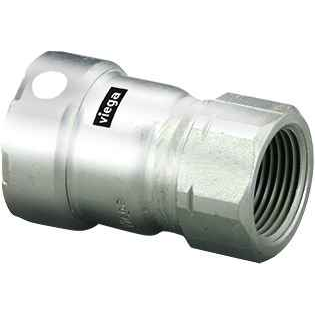

91265 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.437"
- Product Height:
- 2.894"
- Product Weight:
- 1.258 lbs
- Product Width:
- 2.992"
- Product Material:
- 316 stainless steel
Viega 91265 – Frequently Asked Questions
1) What connections does the Viega 91265 MegaPress adapter have?
It is a P x FPT adapter: one press end that goes onto 2 inch pipe, and one 2 inch female NPT threaded port. So you press one side onto the carbon steel or stainless line and thread the other onto male pipe thread, a nipple, a valve, or a gauge assembly. No threading or welding needed on the press side.
2) What size pipe does the Viega 91265 press onto?
The press end is sized for 2 inch pipe, and the threaded port is also 2 inch. It's a same-size adapter, not a reducer, so don't order it expecting to step down from 2 inch to a smaller thread.
3) Can I use the Viega 91265 to transition from pressed pipe to a threaded valve or gauge?
That's exactly what it's for. The 2 inch FPT port accepts male NPT, so a threaded ball valve, nipple, gauge tee assembly or threaded equipment connection screws straight in while the other end presses onto the 2 inch pipe run. Use the appropriate thread sealant on the threaded joint; the press joint needs none.
4) Is the Viega 91265 MegaPress fitting stainless or carbon steel?
The body is 316 stainless steel, which is the grade used where corrosion resistance matters more than the standard carbon steel MegaPress body. Made in Germany.
5) How much room do I need around the Viega 91265 adapter in a tight chase?
The fitting measures 3.437 inches long, 2.992 inches wide and 2.894 inches high, and weighs 1.258 lbs. Plan clearance beyond those figures for the press tool jaw or ring, since a 2 inch MegaPress connection is made with a ring and actuator rather than a compact jaw.
6) What is Smart Connect on the Viega 91265 and why does it matter on inspection?
Smart Connect is the feature Viega builds into the sealing element so an unpressed connection leaks visibly during pressure testing instead of passing quietly and failing later. On a 2 inch line in a mechanical room that is the difference between finding a missed press at test and finding it after the ceiling closes.
