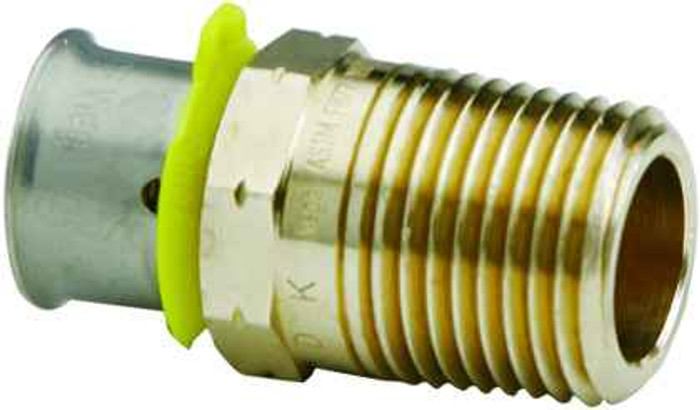

90561 Viega PureFlow Press adapter Zero Lead Bronze, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Country Of Origin:
- Made In Germany
- Material Type:
- Bronze
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 1.339"
- Product Height:
- 1.417"
- Product Weight:
- 0.284 lbs
- Product Width:
- 2.028"
Viega 90561 – Frequently Asked Questions
1) What does the Viega 90561 PureFlow adapter connect to on each end?
The 90561 is a P x MPT adapter: one end is a 1 inch PureFlow press socket for PEX, the other is a 1 inch male pipe thread. So it takes a pressed PEX run and lands it on a female-threaded connection, a valve, a manifold port, or a threaded nipple.
2) Is the Viega 90561 adapter 1 inch on both the press side and the thread side?
Yes, it's a straight 1 inch by 1 inch fitting. The press end takes 1 inch PureFlow PEX tubing and the threaded end is 1 inch MPT, so there is no size step in the fitting and you don't need a separate bushing to keep the line at 1 inch.
3) Should I use a press adapter like the Viega 90561 or a crimp or expansion PEX fitting?
The 90561 is a PureFlow press fitting, so it's made for Viega's press tool with the correct 1 inch jaw. Crimp ring and cold-expansion systems use different fitting geometry and their own tools, and they are not interchangeable with press. Pick the 90561 only if your crew is already pressing PureFlow; if you're crimping, order a crimp-style 1 inch PEX x 1 inch MPT adapter instead.
4) Is the Viega 90561 bronze adapter safe for potable water lines?
It's a zero lead bronze body, which is what Viega uses across the PureFlow line for potable hot and cold water distribution. Bronze also gives you a threaded end that will take a wrench without the deformation risk of a plastic adapter.
5) How much room do I need around the Viega 90561 to get a press tool on it?
The fitting itself is compact: 1.339 inches long, 2.028 inches wide, and 1.417 inches high. The press jaw is what actually sets your clearance, so plan the space around the press socket, not around the fitting body, when you're working tight to a stud bay or a manifold bank.
6) How much does the Viega 90561 adapter weigh for a bulk order?
Each adapter is 0.284 lbs, so a case quantity stays light enough to hand-carry. Useful if you're pulling a count for a multi-unit rough-in and need shipping weight on a pallet of manifold accessories.
