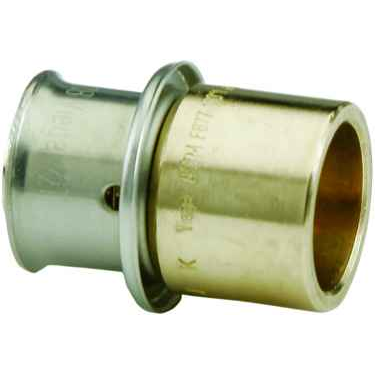

92060 Viega PureFlow Press adapter Zero Lead Bronze, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x C
- Material Type:
- Bronze
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 1.358"
- Product Height:
- 1.358"
- Product Weight:
- 0.186 lbs
- Product Width:
- 1.89"
- Product Material:
- Bronze
Viega 92060 – Frequently Asked Questions
1) What does the P x C connection on the Viega 92060 PureFlow adapter mean?
P x C means one end is a PureFlow press connection for 1 inch PEX tubing and the other is a 1 inch copper end. In practice it is the transition fitting you use where a 1 inch PEX run has to tie into 1 inch copper pipe, so you press one side with a PureFlow jaw and solder or join the copper side.
2) Is the Viega 92060 PureFlow adapter lead free for potable water?
The 92060 is a zero lead bronze body, which is what makes it suitable for potable water distribution rather than hydronic-only service. The body material is bronze throughout.
3) How much room do I need to fit the Viega 92060 adapter in a tight wall cavity?
Overall it measures 1.358 x 1.358 x 1.89 inches, so it will sit in a standard 2x4 stud bay, but the press end still needs clearance for the tool jaw to close around the fitting. Plan the jaw swing, not just the fitting size, when you are up against a plate or a joist.
4) Should I use a press PEX to copper adapter or a threaded transition instead?
A press adapter like the Viega 92060 is the choice when the joint is going to be buried in a wall or ceiling, because there is no thread sealant or gasket to maintain and no flame needed on the PEX side. A threaded union makes more sense where you want the joint serviceable, such as at a water heater or a pump you expect to swap. The 92060's copper end still has to be joined by conventional copper methods, so if you are trying to avoid an open flame entirely, plan that side with a press copper fitting.
5) Do I need PureFlow press sleeves or rings with the Viega 92060 adapter?
The PureFlow press system uses a stainless press sleeve over the PEX at each connection, and those sleeves are ordered separately by tubing size. For the 92060 you want 1 inch PureFlow press sleeves to match its 1 inch press end, plus the matching press tool jaw for that size.
