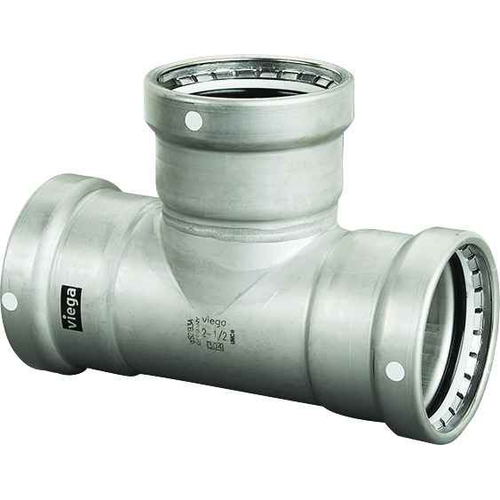

90595 Viega MegaPress tee Smart Connect technology 316 stainless steel, 3'' x 3'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3'' x 3'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.252"
- Product Height:
- 4.181"
- Product Weight:
- 4.312 lbs
- Product Width:
- 6.382"
- Product Material:
- 316 stainless steel
Viega 90595 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 90595 tee connect?
The 90595 is a reducing tee sized 3 inch x 3 inch x 2-1/2 inch, so the run stays at 3 inch and the branch drops to 2-1/2 inch. All three ends are press connections (P1 x P2 x P3), meaning no threading, welding or soldering at any of the three joints.
2) Is the Viega 90595 tee carbon steel or stainless?
It is 316 stainless steel, not carbon steel. That matters on the job: the MegaPress line also comes in carbon steel for black iron pipe, and 316 is what you specify where the fluid or the environment would attack carbon steel. Confirm your system spec calls for stainless before ordering this one.
3) Can I use the Viega 90595 to branch 2-1/2 inch off an existing 3 inch stainless line?
That is what it is built for. The two 3 inch ports take the main run and the 2-1/2 inch port takes the branch, all three by press rather than weld. In 316 stainless, pressing a branch avoids pulling a welder and a hot-work permit for a tie-in, which is the usual reason this fitting gets specified on occupied-building retrofits.
4) Is the Viega MegaPress 90595 tee made in the USA?
No, it is made in Germany. If you are buying against a domestic-preference or Buy American requirement on a government or institutional job, this fitting will not satisfy it.
5) What exact part number should I order for a 3 x 3 x 2-1/2 MegaPress stainless tee?
Viega part number 90595. That single MPN covers this configuration, so there is no finish or option to specify when you order it.
6) What is Smart Connect on the Viega 90595 and why does a contractor care?
Smart Connect is Viega's feature that lets an unpressed connection be identified during pressure testing, so a joint you missed shows up before the wall closes. On a 3 x 3 x 2-1/2 tee with three separate press joints, that is three chances to miss one, which is exactly where the feature pays off on an inspection.
