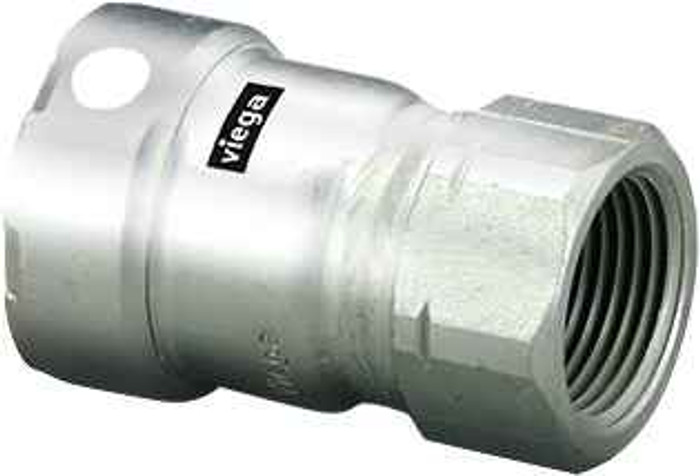

91250 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Tee
- Product Length:
- 2.76"
- Product Height:
- 1.78"
- Product Weight:
- 0.54 lbs
- Product Width:
- 1.78"
- Product Material:
- 316 stainless steel
Viega 91250 – Frequently Asked Questions
1) What does the Viega 91250 MegaPress adapter connect to on each end?
The Viega 91250 is a 1 inch press by 1 inch female NPT adapter. One end is a press connection that crimps onto 1 inch carbon or stainless steel pipe with a press tool and jaw; the other is a 1 inch FPT thread that takes any 1 inch male-threaded nipple, valve or component. That makes it the transition fitting when you need to get from a pressed line into threaded equipment.
2) Is the Viega 91250 MegaPress adapter stainless or carbon steel, and can I use it on a stainless pipe system?
It is built from 316 stainless steel, so it belongs on a 316/304 stainless steel pressed system (MegaPressG Stainless type work) rather than being the plain carbon steel body used on black iron lines. The 316 alloy is the one specified where chloride exposure or corrosive media would attack carbon steel.
3) How much room do I need to fit a 1 inch MegaPress press-to-FPT adapter in a tight chase?
Plan on a body that measures 2.76 inches long and 1.78 inches across (1.78 inch height and width), and about 0.54 lbs in weight. Remember the press jaw itself needs swing clearance around the press end on top of the fitting body, so measure for the tool, not just the 2.76 inch fitting.
4) What is Smart Connect on the Viega 91250, and what does it do for me during pressure test?
Smart Connect is the feature Viega builds into the press end of the 91250 so an unpressed connection leaks deliberately during test instead of holding. You find the missed joint on the test rather than after the ceiling is closed. It does not change how the fitting is pressed, only how an unpressed one behaves.
5) Is the Viega 91250 a tee or a straight adapter? I am seeing it described both ways.
Functionally it is a two-end adapter: 1 inch press to 1 inch female thread, with no branch outlet. If you need a third port to pick up a branch line, you want a MegaPress tee, not the 91250.
6) Where is the Viega 91250 MegaPress fitting manufactured?
Germany. For submittal packages that require country of origin on pressed fittings, the 91250 is documented as made in Germany.
