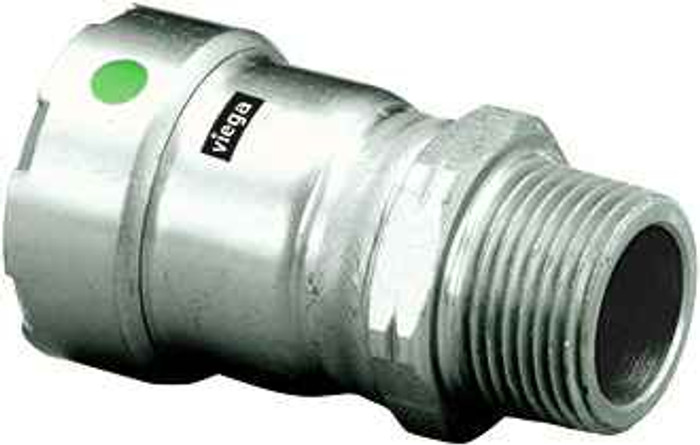

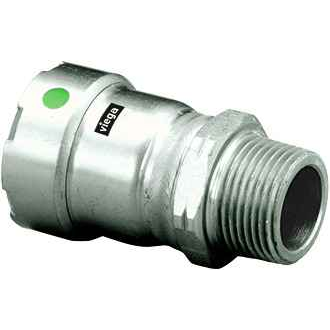

90245 Viega MegaPress adapter Smart Connect technology 316 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.02"
- Product Height:
- 1.78"
- Product Weight:
- 0.465 lbs
- Product Width:
- 1.78"
- Product Material:
- 316 stainless steel
Viega 90245 – Frequently Asked Questions
1) What kind of connection does the Viega 90245 MegaPress adapter have on each end?
The 90245 is a P x MPT adapter: one end is a 1 inch MegaPress press socket that goes onto the pipe, the other is a 1 inch male pipe thread. That lets you transition from a pressed black iron or carbon steel line into any 1 inch female-threaded component, such as a valve, union, or gauge port.
2) Is the Viega 90245 MegaPress adapter stainless steel all the way through?
The body is 316 stainless steel, including the male threaded end. That is the higher-molybdenum grade, so it holds up better than 304 where there is chloride exposure or washdown. The fitting is made in Germany.
3) How much room do I need to press a 1 inch MegaPress adapter in a tight chase?
The 90245 measures 3.02 inches long and 1.78 inches in both height and width, and weighs 0.465 lbs. Plan clearance around that body for the press jaw to swing, not just for the fitting itself.
4) What does Smart Connect technology on the Viega 90245 actually do for me on the job?
Smart Connect is the feature Viega builds into the MegaPress sealing element so an unpressed connection leaks visibly during pressure test instead of passing inspection and failing later. On a run with a dozen fittings it is how you find the one the crew missed before the ceiling closes.
5) Can I order the Viega 90245 in a different size or material?
The 90245 is a single configuration: 1 inch by 1 inch, 316 stainless steel, press by male pipe thread. Other sizes and the carbon steel MegaPress line carry their own Viega model numbers.
