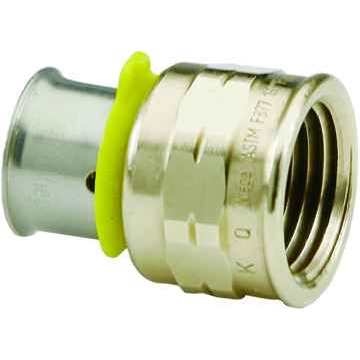

91525 Viega PureFlow Press adapter Zero Lead Bronze, 1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- Bronze
- Product Dimension:
- 1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Adapters
- Product Type:
- Adapter
- Product Length:
- 1.201"
- Product Height:
- 1.26"
- Product Weight:
- 0.135 lbs
- Product Width:
- 1.378"
- Product Material:
- Bronze
Viega 91525 – Frequently Asked Questions
1) What does the Viega 91525 PureFlow adapter connect to on each end?
The Viega 91525 is a press-by-female-threaded adapter: a 1/2 inch PureFlow press socket on one side and a 3/4 inch female pipe thread on the other. So it takes 1/2 inch PEX tubing crimped with the press tool on one end and threads onto a 3/4 inch male NPT nipple, valve, or appliance connection on the other.
2) Can I use the 91525 to step a 1/2 inch PEX line up to a 3/4 inch threaded connection?
Yes. The press side is 1/2 inch and the thread side is 3/4 inch female, so the fitting does the size change for you. No separate bushing needed between the PEX and the 3/4 inch male thread.
3) Does the 91525 PureFlow adapter work with copper press or only PEX?
It is a PureFlow press fitting, which is Viega's PEX system. The 1/2 inch press socket is sized for PureFlow PEX tubing, not for copper tube press. For copper you need a ProPress fitting instead.
4) Is the Viega 91525 adapter lead free for potable water?
It is a zero lead bronze body, which is what you want on a potable water line. Bronze is listed as the material on both the material fields for the 91525.
5) Does the 91525 come with the press sleeve or do I order that separately?
The 91525 is the bronze adapter body itself. PureFlow press connections are made with a press sleeve over the tubing and the matching Viega press tool jaw for 1/2 inch, so plan on having the sleeves and the correct jaw on the truck before you set the fitting.
