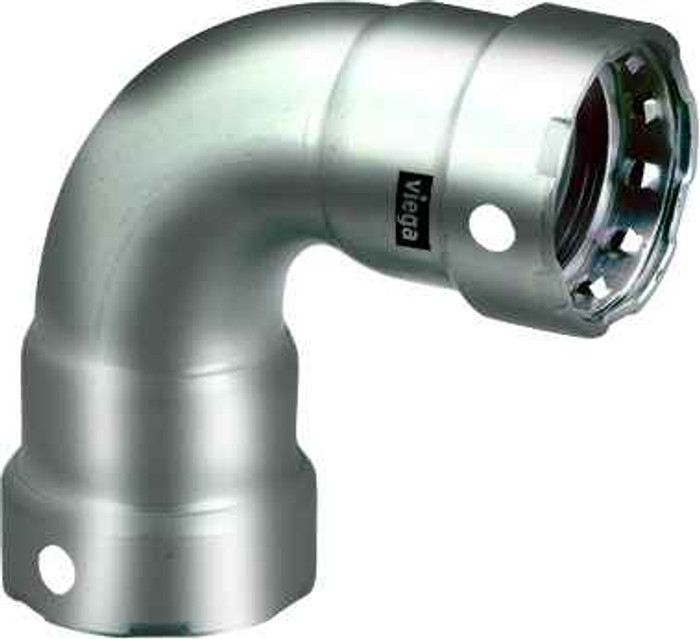

91695 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 2.878"
- Product Height:
- 1.264"
- Product Weight:
- 0.326 lbs
- Product Width:
- 2.878"
- Product Material:
- 316 stainless steel
Viega 91695 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 91695 elbow fit?
The 91695 is a 1/2 inch by 1/2 inch 90 degree elbow, so it joins two runs of 1/2 inch pipe at a right angle. Both ends are press ends (P1 x P2), meaning no threading, soldering or welding at either connection.
2) Is the Viega 91695 press elbow stainless or carbon steel?
It is 316 stainless steel, the molybdenum-bearing grade used where corrosion resistance matters more than it would on a plain carbon steel fitting. Match it to stainless pipe rather than mixing it into a black iron run.
3) How much room do I need to press a 1/2 inch MegaPress 90 elbow in a tight chase?
The fitting body itself measures 2.878 inches in length and width with a height of 1.264 inches, and it weighs 0.326 lbs. Plan clearance around that footprint plus whatever swing your press jaw needs on each end.
4) Do I need to solder or thread anything to install the Viega 91695 elbow?
No. Both ends are press connections, so the joint is made cold with a press tool and jaw sized for 1/2 inch. That means no torch, no flux, and no thread cutting on the 1/2 inch run.
5) What does Smart Connect mean on a Viega MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: an unpressed fitting leaks visibly during pressure testing so it gets caught before the walls close. On the 91695 that applies to both 1/2 inch press ends.
6) Can I use the Viega 91695 elbow where a copper press fitting would corrode?
The 91695 is built in 316 stainless rather than copper or carbon steel, which is the grade specifiers reach for in corrosive or washdown environments. It is a 1/2 inch 90 degree elbow, press on both ends, so it drops into a stainless press run without changing the joining method.
7) What is the manufacturer part number for the Viega 1/2 inch stainless MegaPress 90 elbow, and where is it made?
Order it as Viega part 91695. It is made in Germany.
