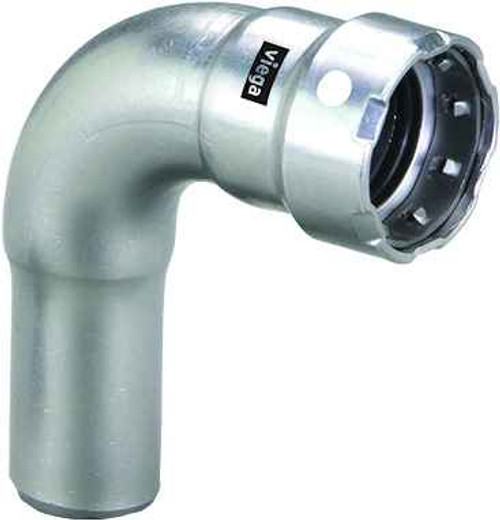

90025 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 6.213"
- Product Height:
- 2.894"
- Product Weight:
- 2.081 lbs
- Product Width:
- 6.213"
Viega 90025 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 90025 elbow fit?
The 90025 MegaPress elbow is a 2 inch by 2 inch fitting, so both ends press onto 2 inch pipe. It changes direction 90 degrees with press connections on each end (P1 x P2), no threading or welding.
2) Is the Viega 90025 elbow stainless or carbon steel?
It is 316 stainless steel. That is the grade to use where you need better corrosion resistance than carbon steel press fittings give you, which is why MegaPress in 316 gets specified on wash-down, coastal, chemical, and food service piping rather than plain black iron runs.
3) Do I need a threader or welder to install the Viega 90025?
No. Both ends are press connections, so the joint is made cold with a press tool and jaw sized for 2 inch MegaPress. No cutting oil, no threading dies, no hot work permit, which is the main reason crews move to press on occupied buildings.
4) What does Smart Connect technology do on a MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: during pressure testing an unpressed 90025 elbow will leak noticeably so the installer finds the missed joint before the system is put into service. It is a jobsite QA feature, not something that changes how the finished press joint performs.
5) How much room do I need to allow for a 2 inch MegaPress elbow?
Plan around a fitting body of roughly 6.213 inches in length and width with a height of 2.894 inches, and it weighs 2.081 lbs. Also leave clearance for the press tool jaw around the joint, which is usually the tighter constraint in a joist bay or against a wall.
6) What part number do I order for the Viega 2 inch stainless MegaPress 90 elbow?
Order Viega part number 90025. It is a single configuration, 2 inch by 2 inch, 316 stainless, so there is no finish or option to specify beyond quantity.
7) Is the Viega 90025 elbow made in the USA?
It is made in Germany. Worth checking against your spec if the job carries a domestic sourcing requirement such as a federally funded project.
