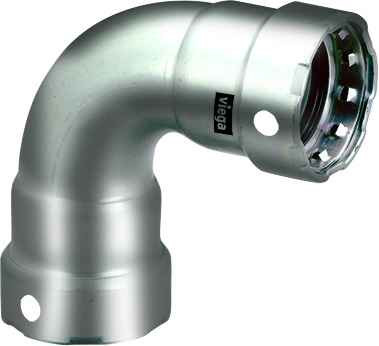

91710 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 1-1/4'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1-1/4'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 4.921"
- Product Height:
- 2.205"
- Product Weight:
- 1.263 lbs
- Product Width:
- 4.921"
- Product Material:
- 316 stainless steel
Viega 91710 – Frequently Asked Questions
1) Can I use the MegaPress 91710 elbow on copper tube?
No. MegaPress fittings press onto iron pipe size steel pipe, not copper tube, and the 91710 is sized 1-1/4 inch IPS on both press ends. For copper you need a copper press system fitting instead.
2) Is the Viega 91710 elbow press-fit on both ends, or does one end thread?
Both ends are press connections, listed as P1 x P2. There is no threaded or solder end, so you need a press tool with the matching MegaPress jaw to make up each joint.
3) Is the Viega MegaPress 91710 made of 304 or 316 stainless?
It is 316 stainless steel, the higher-molybdenum grade, which is why it gets specified for more corrosive or chloride-exposed service than a carbon steel or 304 fitting. The 91710 is made in Germany.
4) How much clearance do I need to install a 1-1/4 inch MegaPress 90 degree elbow in a tight chase?
Plan around the fitting envelope of 4.921 inches length by 4.921 inches width by 2.205 inches height, then add room for the press tool and jaw to swing on each end. The elbow itself weighs 1.263 lbs, so it needs no intermediate support beyond normal pipe hangers.
5) What is Smart Connect on the Viega 91710 elbow and why does it matter on a big job?
Smart Connect is Viega's feature that lets an unpressed joint leak visibly during pressure testing, so a connection you missed shows up on test instead of after the walls close. On a run with dozens of 1-1/4 inch elbows that is the difference between finding one skipped press and chasing it later.
