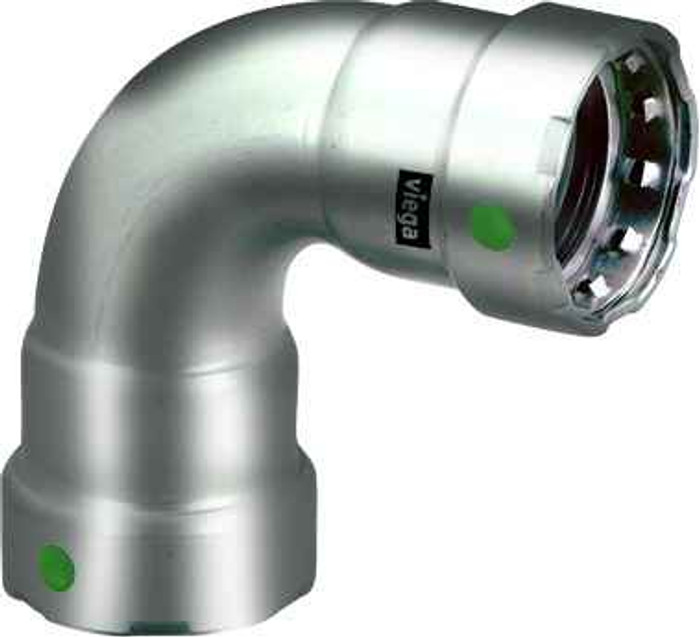

90015 Viega MegaPress 90° elbow Smart Connect technology 316 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.961"
- Product Height:
- 1.78"
- Product Weight:
- 0.785 lbs
- Product Width:
- 3.961"
- Product Material:
- 316 stainless steel
Viega 90015 – Frequently Asked Questions
1) What pipe size does the Viega 90015 MegaPress elbow press onto?
The MegaPress 90015 is a 1 inch by 1 inch elbow, so both ends press onto 1 inch pipe. It is a press fitting on both ends (P1 x P2), not threaded or grooved, so you need a MegaPress jaw set sized for 1 inch to make the connection.
2) Is the Viega 90015 elbow stainless steel or carbon steel?
It is 316 stainless steel, which is the corrosion resistant grade with molybdenum. That matters if you are running the line outdoors, in a coastal or chemical environment, or anywhere a carbon steel MegaPress fitting would rust at the joint.
3) Can I mix a 316 stainless MegaPress elbow with carbon steel MegaPress fittings on the same line?
Stick to one material family. The 90015 is 316 stainless, and joining stainless directly to carbon steel pipe or fittings sets up galvanic corrosion at the joint. If the run is black iron or carbon steel pipe, use the carbon steel MegaPress elbow in that size instead; use the stainless 90015 where the pipe itself is stainless.
4) How much space do I need to fit a 1 inch MegaPress 90 degree elbow in a tight chase?
The 90015 elbow measures 3.961 inches long by 3.961 inches wide with a 1.78 inch height, and it weighs 0.785 lbs. Plan the clearance around those figures plus room to get the press jaw around each end squarely, since the tool needs to sit perpendicular to the pipe at both connections.
5) What is Smart Connect on the Viega 90015 and why does an inspector care?
Smart Connect is the feature built into the MegaPress sealing element that deliberately leaks a small amount at an unpressed joint during pressure test. On a long run of 1 inch pipe with dozens of joints, it means a missed press shows itself on test instead of after the walls close up.
6) Do I need to thread or weld pipe to use the Viega 90015?
No. Both ends are press, so the pipe is cut, deburred, marked for insertion depth, and pressed cold with a MegaPress jaw. No threading dies, no cutting oil, no hot work permit, which is the usual reason crews pick MegaPress over welded or threaded 1 inch stainless in an occupied building.
7) Where is the Viega MegaPress 90015 elbow made?
Germany. For submittal packages and buy-local or country-of-origin documentation on institutional jobs, the 90015 lists Made In Germany.
