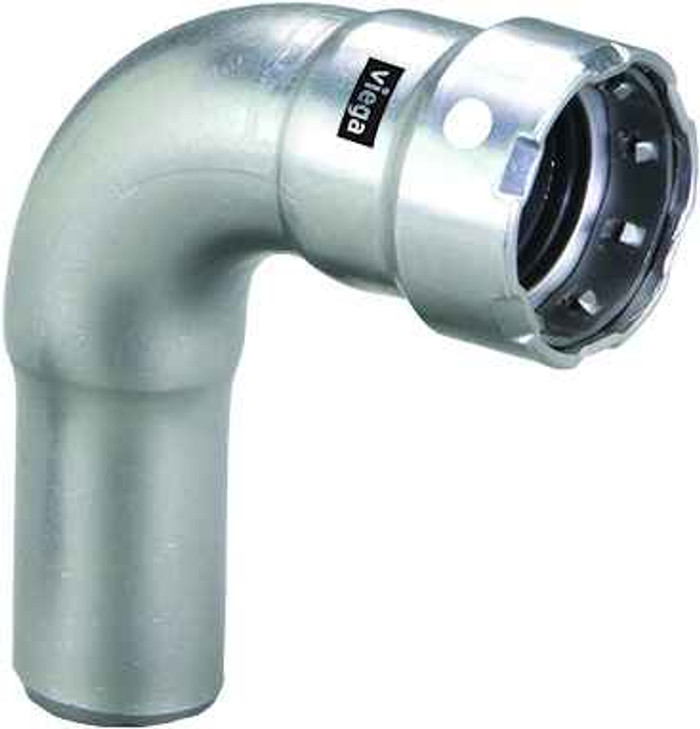

91735 Viega MegaPress 90° street elbow Smart Connect technology 316 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 4.276"
- Product Height:
- 1.78"
- Product Weight:
- 0.807 lbs
- Product Width:
- 3.819"
- Product Material:
- 316 stainless steel
Viega 91735 – Frequently Asked Questions
1) Is the Viega 91735 MegaPress elbow stainless or carbon steel, and where can I use it?
It is built in 316 stainless steel, which is the corrosion resistant grade of the MegaPress line rather than the standard carbon steel body. That matters where the fitting sees damp mechanical rooms, wash-down areas, coastal air, or more aggressive media than plain heating water.
2) How much room do I need to fit this 1 inch MegaPress street elbow in a tight chase?
Plan around a fitting that measures 4.276 x 3.819 x 1.78 inches. Beyond the fitting itself, allow clearance for the press jaw to wrap the socket and rotate, which is usually the real constraint in a chase or against a wall.
3) What is Smart Connect on the Viega 91735 and why would a contractor care?
Smart Connect is the feature designed into the fitting that lets an unpressed connection leak intentionally during pressure testing, so an installer finds the missed joint on the test rather than after the ceiling is closed. On a large repipe that is the difference between a punch list item and a callback.
4) Should I use a street elbow or a regular 90 degree elbow here?
Use the street version when the turn happens immediately at another fitting or valve socket. A standard P x P elbow has two sockets and needs a length of pipe on each side, so joining it directly to another fitting means cutting a short nipple. The 91735 has one male FTG end instead, which removes that nipple and one press.
5) How heavy is a 1 inch stainless MegaPress 90 for estimating a hanger layout?
The fitting weighs 0.807 lbs. Light enough that a single stainless elbow is not what drives hanger spacing, but worth counting on a run with many directional changes.
