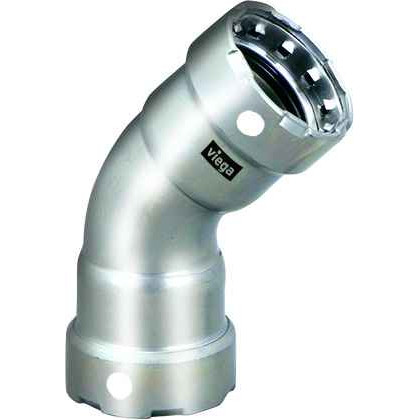

91755 Viega MegaPress 45° elbow Smart Connect technology 316 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.295"
- Product Height:
- 1.264"
- Product Weight:
- 0.271 lbs
- Product Width:
- 2.252"
- Product Material:
- 316 stainless steel
Viega 91755 – Frequently Asked Questions
1) What pipe does the Viega 91755 MegaPress 45 degree elbow press onto?
The 91755 is a 1/2 inch by 1/2 inch press x press fitting, so both ends press directly onto 1/2 inch carbon steel pipe. There is no threading or welding involved, and no transition end on this fitting, both outlets are press connections (P1 x P2).
2) Is the Viega 91755 45 degree elbow stainless or carbon steel?
The fitting body is 316 stainless steel. That matters on jobs where the fitting sees moisture, washdown, or a corrosive environment, and it is the reason this version is specified over the carbon steel MegaPress line on many mechanical rooms and process lines.
3) What is Smart Connect on the Viega MegaPress elbow and does it change how I install it?
Smart Connect is Viega's unpressed-connection feature: before pressing, the sealing element lets a small amount of fluid escape at the connection so an unpressed joint shows itself during pressure test rather than after the walls close. It does not change the install sequence, you still cut, deburr, mark insertion depth, seat the pipe fully, and press with the matching jaw.
4) Do I need anything besides the fitting to make up a MegaPress 1/2 inch joint?
The elbow is supplied as the fitting only, with its sealing element installed. You supply the press tool and the correct MegaPress jaw or ring for 1/2 inch, plus a deburring tool and a depth marker. There is no solder, flux, thread sealant, or separate gasket to buy for this connection.
5) How much space does the Viega 91755 45 degree elbow take up in a tight chase?
Overall the fitting measures 3.295 x 2.252 x 1.264 inches and weighs 0.271 lbs. Use those numbers when you are laying out an offset in a shallow chase or near a wall, and remember you also need clearance around the joint for the press jaw to close fully.
6) Should I use a 45 degree elbow or two 90s for an offset in black pipe?
A pair of 45s, like the Viega 91755, gives you a shallower offset with less directional change than two 90s, which keeps pressure drop down and makes it easier to jog around an obstruction without eating up headroom. Use 90s where you need a square turn at a riser or a tee drop. On a press system the 45 also means two press joints instead of two joints plus extra nipple cuts.
