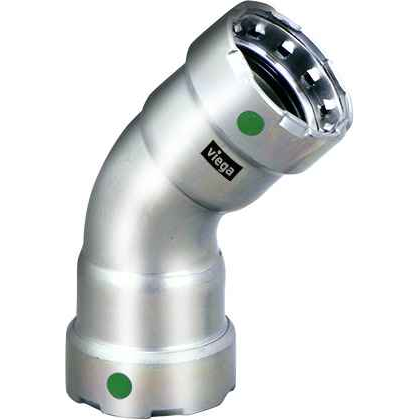

90055 Viega MegaPress 45° elbow Smart Connect technology 316 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.295"
- Product Height:
- 1.264"
- Product Weight:
- 0.266 lbs
- Product Width:
- 2.252"
- Product Material:
- 316 stainless steel
Viega 90055 – Frequently Asked Questions
1) What size pipe does the Viega 90055 MegaPress 45 degree elbow press onto?
The 90055 is a 1/2 inch by 1/2 inch fitting, so both ends press onto 1/2 inch pipe. Both ends are press connections (P1 x P2), meaning no threading, no grooving and no welding at either end.
2) Is the Viega 90055 elbow stainless or carbon steel?
It is 316 stainless steel, the more corrosion resistant of the MegaPress materials. That makes it the one to specify where the carbon steel version would be at risk, and it should not be mixed into a run where the spec calls for carbon steel fittings on carbon pipe.
3) Why pick a 45 degree elbow instead of two 90s on a press run?
A 45 handles an offset or a jog around an obstruction with a gentler change of direction than a pair of 90s, which means less pressure drop and one fewer joint to press. The 90055 is a 1/2 inch 45, press on both ends, so it drops into the run without threading.
4) How much room do I need to fit the Viega 90055 in a tight chase?
The fitting measures 3.295 x 2.252 x 1.264 inches and weighs 0.266 lbs. Plan clearance around those numbers for the press tool jaw as well, since the jaw needs to close fully around the collar to make a complete press.
5) What does Smart Connect on the Viega MegaPress 90055 actually do for me?
Smart Connect is a feature of the sealing element that lets an unpressed connection leak under test, so you find the joint you missed during pressure testing rather than after the walls close up. On a long press run it is the difference between one visible drip and a callback.
