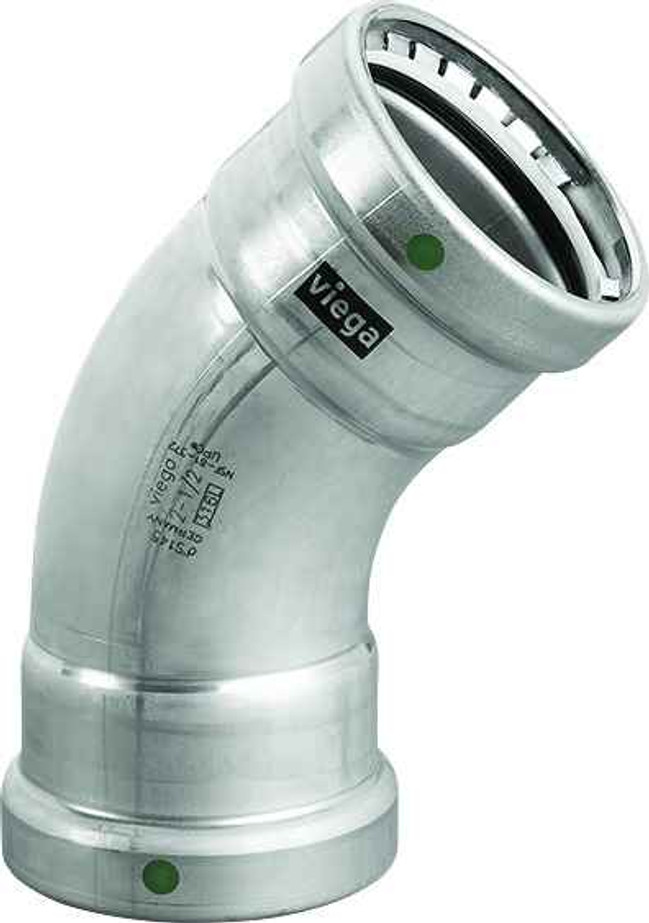

90530 Viega MegaPress 45° elbow Smart Connect technology 316 stainless steel, 2-1/2'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2-1/2'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 7.882"
- Product Height:
- 3.543"
- Product Weight:
- 2.9 lbs
- Product Width:
- 5.744"
Viega 90530 – Frequently Asked Questions
1) Is the Viega 90530 elbow stainless steel or carbon steel?
It is 316 stainless steel. That is the grade to use where the line or the environment is corrosive, versus the carbon steel MegaPress fittings used on black iron service.
2) What does Smart Connect technology do on this Viega elbow?
Smart Connect is Viega's unpressed-connection feature on the 90530 MegaPress elbow. A joint that has been assembled but not pressed will leak visibly during pressure testing, so the installer can find the missed press before the system is put into service rather than after the ceiling is closed.
3) When should I use a 45 degree MegaPress elbow instead of a 90?
Use the 45 when you need to offset a 2-1/2 inch run around an obstruction or bring two runs together at a shallow angle, which keeps flow resistance lower than a pair of 90s would. Use a 90 for a square change of direction. The 90530 handles the 45 degree turn with press ends on both sides.
4) What part number and UPC should I order for the Viega 2-1/2 inch stainless MegaPress 45?
Order Viega part number 90530, UPC 691514905303. It is made in Germany.
How fast can I get the Viega 90530 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 90530 come with a warranty?
Absolutely. The Viega 90530 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 90530?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
