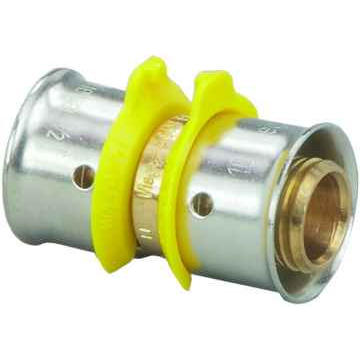

93020 Viega PureFlow Press coupling Zero Lead Bronze, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Bronze
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Coupling
- Product Length:
- 0.85"
- Product Height:
- 0.898"
- Product Weight:
- 0.052 lbs
- Product Width:
- 1.378"
- Product Material:
- Bronze
Viega 93020 – Frequently Asked Questions
1) What size tubing does the Viega 93020 PureFlow press coupling join?
The Viega 93020 is a 1/2 inch by 1/2 inch coupling, so it joins two runs of 1/2 inch PureFlow tubing in a straight line. Both ends are press connections (P1 x P2), meaning neither end is threaded or sweat.
2) Is the Viega 93020 coupling brass or bronze, and is it lead free?
It is a zero lead bronze body. That is the material to specify for potable water lines where lead free fittings are required on the job.
3) Do I need a special tool to install a Viega PureFlow press coupling, or can I crimp it by hand?
Press fittings like the 93020 are not hand crimped. The P1 x P2 ends are made up with a press tool and the correct PureFlow jaw for 1/2 inch, so budget for the tool and jaw if you are not already set up for press.
4) How much room do I need to press a Viega 93020 coupling in a tight joist bay or wall cavity?
The fitting itself is small: 0.85 inch long, 1.378 inch wide and 0.898 inch high. The clearance that actually governs is the swing of the press jaw around it, not the coupling, so plan the bay around your tool rather than the fitting body.
5) Is this a repair coupling for cutting into an existing PEX line?
The 93020 is a straight inline coupling with two press ends, so it works as a splice when you cut out a damaged section and press back to both cut ends of 1/2 inch tubing. It has no slip or slide feature, so you need enough flex in the run to bring both ends into the fitting.
