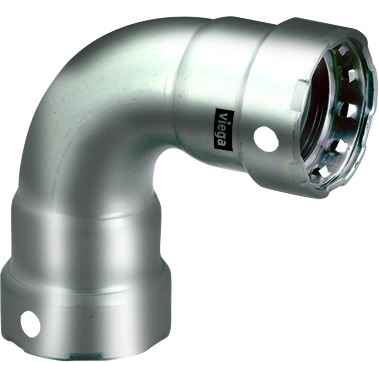

95010 Viega MegaPress 90° elbow Smart Connect technology 304 stainless steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 3.268"
- Product Height:
- 1.496"
- Product Weight:
- 0.423 lbs
- Product Width:
- 3.268"
- Product Material:
- 304 stainless steel
Viega 95010 – Frequently Asked Questions
1) What material is the Viega MegaPress 95010 elbow made from, and does it matter for my piping?
It is 304 stainless steel. That matters when you are choosing between the carbon steel and stainless versions of MegaPress: the stainless body is the one specified where the carbon steel fitting would not be acceptable for the service or the environment. Match the fitting material to the system the engineer specified.
2) How much clearance do I need to install the 3/4 inch MegaPress 90 degree elbow?
The fitting body measures 3.268 inches in length and width with a height of 1.496 inches, so plan for roughly three and a quarter inches of reach on each leg plus room for the press jaw to close around the bead. In tight joist bays or against a wall, dry-fit and check jaw swing before you press, because a pressed joint cannot be backed off.
3) What does Smart Connect technology do on the Viega 95010 elbow?
Smart Connect is Viega's unpressed-connection feature. An elbow that gets left unpressed will leak on purpose during pressure test, so the installer finds the miss on the test rather than after the wall is closed. On a large repipe with dozens of joints that is the reason crews specify MegaPress over alternatives.
