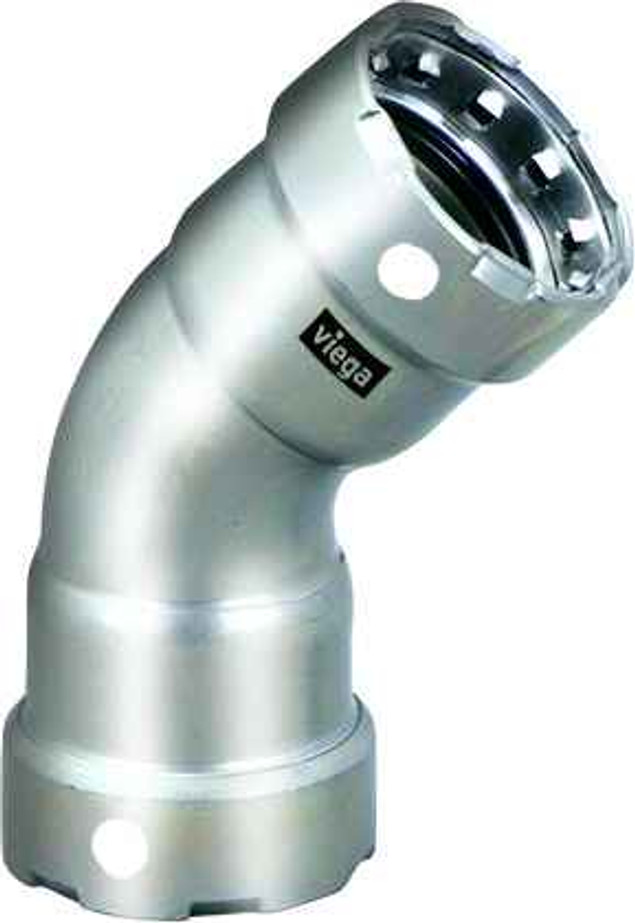

95075 Viega MegaPress 45° elbow Smart Connect technology 304 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 6.618"
- Product Height:
- 2.894"
- Product Weight:
- 1.62 lbs
- Product Width:
- 4.783"
- Product Material:
- 304 stainless steel
Viega 95075 – Frequently Asked Questions
1) What pipe does the Viega MegaPress 95075 45-degree elbow press onto?
The 95075 is a 2 inch x 2 inch 45-degree elbow with press connections on both ends (P1 x P2), made of 304 stainless steel. MegaPress fittings press onto black iron pipe, so both outlets take 2 inch pipe and no threading or welding is needed at either end.
2) How much space does a 2 inch MegaPress 45 elbow take up in a tight mechanical room?
Plan for a body roughly 6.618 inches long, 4.783 inches wide and 2.894 inches high. That is the envelope of the fitting itself; you also need clearance around the pipe for the press jaw or ring to close squarely on both collars, so measure for the tool, not just the elbow.
3) What does Smart Connect on the Viega MegaPress 95075 actually do for me on the job?
Smart Connect is a deliberate leak path built into the sealing element so an unpressed connection weeps during pressure test instead of passing inspection and failing later. On a run with several 2 inch 45-degree offsets, that is how you find the one joint the crew missed before the ceiling closes.
4) Should I use a 45-degree elbow or two 90s to get around an obstruction?
A pair of 45s like the 95075 gives you a shallow offset with far less pressure drop and a shorter overall deviation than two 90-degree elbows, which is why 45s are the normal choice for jogging around a beam or duct. Use 90s when you need a true right-angle turn or to drop into a riser. Both ends of the 95075 are 2 inch press, so you can press a 45 at each end of a short nipple to make the offset.
5) Do I need a special press tool for a 2 inch MegaPress fitting?
Yes, 2 inch MegaPress joints are made with a press tool using the large-diameter press ring and actuator rather than a standard jaw, since 2 inch is above the jaw range used on the smaller sizes. The elbow itself ships as a fitting only; the tool, ring and actuator are separate.
6) Is a stainless steel MegaPress elbow okay to use on black iron pipe, or will it corrode?
The 95075 body is 304 stainless steel, which is the standard MegaPress material for joining carbon steel pipe. The press seal isolates the joint, and this is the configuration Viega builds the fitting for, so it is the normal pairing rather than an exception.
