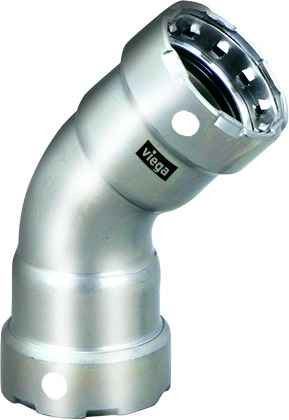

95055 Viega MegaPress 45° elbow Smart Connect technology 304 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Length:
- 3.295"
- Product Height:
- 1.264"
- Product Weight:
- 0.264 lbs
- Product Width:
- 2.252"
- Product Material:
- 304 stainless steel
Viega 95055 – Frequently Asked Questions
1) Does the Viega 95055 MegaPress 45 degree elbow work on both ends as a press connection?
Both ends of the 95055 are press ends, listed as P1 x P2, sized 1/2 inch by 1/2 inch. There is no threaded or solder end on this fitting, so you press it onto 1/2 inch pipe on both sides with a MegaPress jaw.
2) What material is the Viega 95055 MegaPress elbow, and can I use it on a stainless line?
It is made of 304 stainless steel, so it suits stainless piping systems and applications where you do not want carbon steel in the line. Note this is the stainless version of MegaPress, not the carbon steel one.
3) Do I need a special press tool for the Viega 95055, or will my ProPress jaws work?
MegaPress fittings for steel pipe use MegaPress jaws and rings, not the copper ProPress jaws. The 95055 is a 1/2 inch MegaPress fitting, so you need the 1/2 inch MegaPress jaw on a compatible press tool.
4) How much space do I need to fit a Viega 95055 45 degree press elbow in a tight chase?
The fitting measures 3.295 inches long, 2.252 inches wide and 1.264 inches high, and weighs 0.264 lbs. Those are the fitting dimensions only, so allow additional clearance around the joint for the press tool jaw to close on both ends.
5) When should I use a 45 degree press elbow instead of a 90?
Use the 45 when you need to offset around an obstruction or swing a run gently rather than turn a hard corner. Two 45s make a clean offset with less flow restriction than a pair of 90s. If you are turning square off a wall or into a riser, a 90 degree MegaPress elbow in the same 1/2 inch size is the right part instead.
6) What does Smart Connect technology do on the Viega 95055 fitting?
Smart Connect is Viega's feature that lets an unpressed connection be identified during pressure testing, so a missed joint shows itself before the system is put into service. It is built into the 95055 MegaPress 45 degree elbow.
