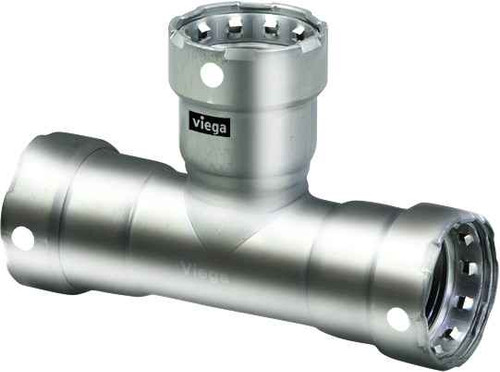

95205 Viega MegaPress tee Smart Connect technology 304 stainless steel, 1-1/2'' x 1-1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.953"
- Product Height:
- 2.437"
- Product Weight:
- 1.563 lbs
- Product Width:
- 3.185"
- Product Material:
- 304 stainless steel
Viega 95205 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 95205 tee?
The 95205 is a reducing tee with two press ends and one threaded branch: 1-1/2 inch press x 1-1/2 inch press x 3/4 inch female pipe thread. So the run presses onto 1-1/2 inch pipe and the 3/4 inch branch takes a male threaded nipple, gauge, drain, or sensor fitting.
2) Is the Viega 95205 the right fitting for dropping a 3/4 inch takeoff off a 1-1/2 inch main?
That is exactly what it does. The 1-1/2 inch run presses straight into the existing line and the 3/4 inch female threaded outlet gives you a branch for a drain valve, pressure gauge, air vent, or a threaded nipple into 3/4 inch pipe. If you want the branch pressed instead of threaded, you need a press-by-press-by-press MegaPress tee rather than this one.
3) What does Smart Connect do on a MegaPress fitting, and does it mean I can skip the press?
Smart Connect leaves a deliberate leak path at the sealing element so an unpressed joint weeps visibly during pressure testing. It is a way to catch a missed connection before the system goes into service, not a substitute for pressing. Every one of the three connections on the 95205 still has to be made up: both 1-1/2 inch press ends pressed with the correct MegaPress jaw, and the 3/4 inch female thread sealed with tape or dope.
4) What part number do I order for the 1-1/2 x 1-1/2 x 3/4 MegaPress tee with a threaded branch?
Viega part number 95205. One number covers the complete fitting: 1-1/2 inch press x 1-1/2 inch press x 3/4 inch FPT, 304 stainless steel. Nothing else ships with it, so order sealing tape or dope for the threaded branch and confirm you have the MegaPress jaw or ring for 1-1/2 inch.
5) Why is the Viega 95205 stainless when my piping system is carbon steel?
The 304 stainless body resists corrosion at the fitting and does not depend on the pipe material for its service life. It is the standard MegaPress body material and is commonly specified on mechanical, compressed air, and hydronic lines in commercial buildings. The part is made in Germany.
